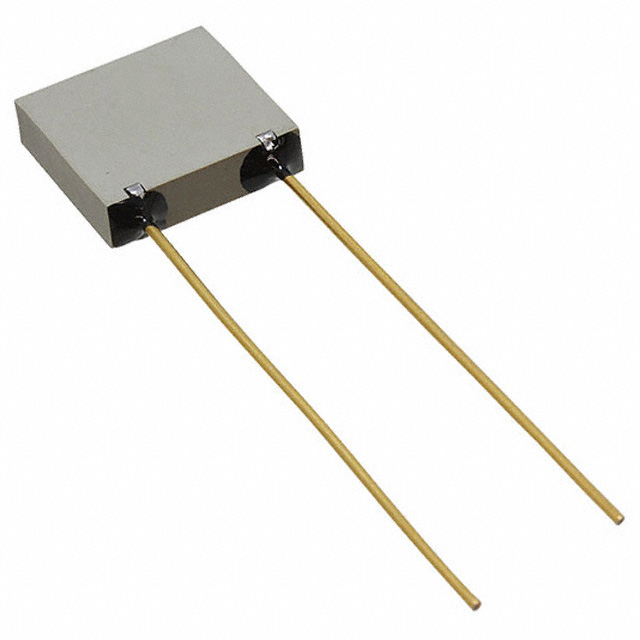

VCR60W392KGS

Active

KEMET

CAP CER 3900PF 4KV NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 3900PF 4KV NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	VCR60W392KGS

Applications	General Purpose
Capacitance	3900 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.6 in
Height - Seated (Max) [Max] [z]	15.24 mm
Lead Spacing	10.16 mm
Lead Spacing	0.4 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	13.97 mm
Size / Dimension [x]	0.55 in
Size / Dimension [y]	0.375 in
Size / Dimension [y]	9.52 mm
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	4 kV
Voltage - Rated	4000 V

CAP CER 3900PF 4KV NP0 RADIAL

Part	Capacitance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Lead Style	Package / Case	Features	Voltage - Rated	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient
KEMET VCR60W392KGS	3900 pF	10 %	0.6 in	15.24 mm	General Purpose	Through Hole	10.16 mm	0.4 in	Straight	Radial	High Temperature, High Voltage	4 kV	4000 V	-55 °C	200 °C	13.97 mm	0.55 in	0.375 in	9.52 mm	C0G, NP0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3900 pF ±10% 4000V (4kV) Ceramic Capacitor C0G, NP0 Radial
