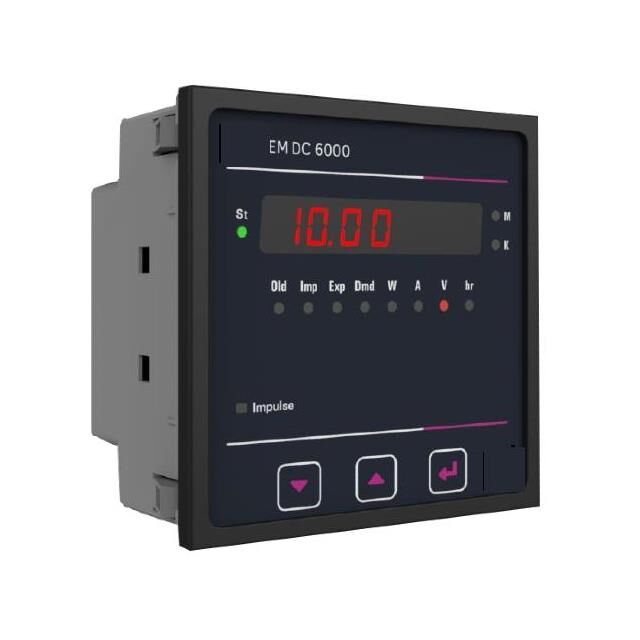

AP93-ZV3HZZ0000000

Active

Sifam Tinsley Instrumentation Inc

DC PWR MTR 200-1000DC AUX60-300V

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

DC PWR MTR 200-1000DC AUX60-300V

Technical Specifications

Parameters and characteristics for this part

Specification	AP93-ZV3HZZ0000000

Display Characters - Height [z]	9 mm, 18.1 mm
Display Characters - Height [z]	0.354 ", 0.713 in
Display Type	LED - Red Characters, LCD - Red Characters
Features	DC Energy Meter With Advanced Monitoring and Logging option
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	1000 VDC
Measuring Range [Min]	201 VDC
Measuring Type	Current (3-Phase), Wattage, Voltage
Number of Characters Per Row	8
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92.8 mm, 92 mm
Panel Cutout Dimensions [y]	92.8 mm, 92 mm
Termination Style	Screw Terminal
Type	DC Amp Meter Controller, Energy Monitor
Voltage - Supply [Max]	300 VAC/DC
Voltage - Supply [Min]	60 VAC/DC
Weight	323.41 g
Weight	0.713 lb

DC PWR MTR 200-1000DC AUX60-300V

Part	Display Characters - Height [z]	Display Characters - Height [z]	Features	Number of Characters Per Row	Type	Weight	Weight	Measuring Range [Max]	Measuring Range [Min]	Display Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
Sifam Tinsley Instrumentation Inc AP93-ZV3HZZ0000000	9 mm, 18.1 mm	0.354 ", 0.713 in	DC Energy Meter With Advanced Monitoring and Logging option	8	DC Amp Meter Controller, Energy Monitor	323.41 g	0.713 lb	1000 VDC	201 VDC	LCD - Red Characters, LED - Red Characters	92 mm, 92.8 mm	92 mm, 92.8 mm	IP54 - Dust Protected, Water Resistant	60 VAC/DC	300 VAC/DC	Current (3-Phase), Voltage, Wattage	Screw Terminal	55 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 250.00

General part information

DC Amp Meter Controller LCD - Red Characters Display Panel Mount
