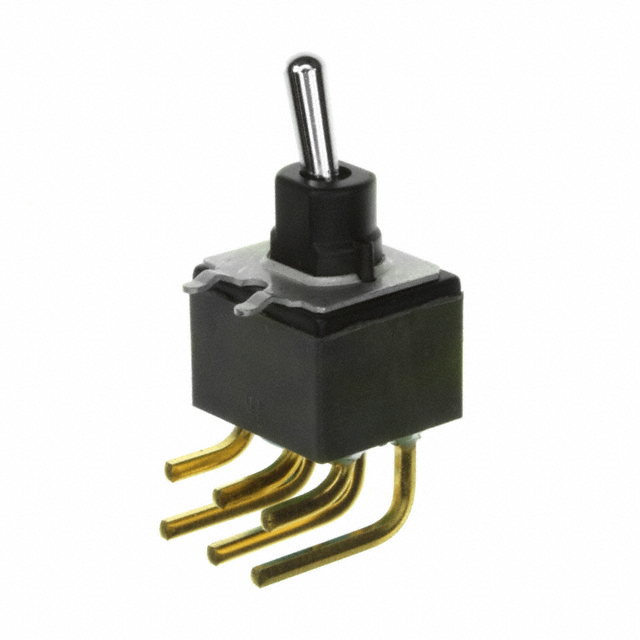

M2T22S4A5G30

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2T22S4A5G30

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2T22S4A5G30

Actuator Length [x]	7.62 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2T22S4 Series

Part	Switch Function	Termination Style	Mounting Type	Features	Actuator Length [x]	Bushing Thread	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Illumination	Electrical Life	Voltage Rating - AC	Circuit	Actuator Material	Voltage Rating - DC
NKK Switches M2T22S4A5G40	On-On	PC Pin	Right Angle Through Hole Vertical	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	0.4 VA	Non-Illuminated	50000 Cycles	28 V	DPDT	Brass Nickel Plated	28 V
NKK Switches M2T22S4A5W30	On-On	PC Pin	Through Hole Right Angle	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	4 A 6 A	Non-Illuminated	25000 Steps	125 V	DPDT	Brass Nickel Plated	30 V
NKK Switches M2T22S4A5G30	On-On	PC Pin	Through Hole Right Angle	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	0.4 VA	Non-Illuminated	50000 Cycles	28 V	DPDT	Brass Nickel Plated	28 V
NKK Switches M2T22S4A5W13/CUL	On-On	PC Pin	Through Hole	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	6 A		25000 Steps	125 V	DPDT	Brass Nickel Plated
NKK Switches M2T22S4A5W40	On-On	PC Pin	Right Angle Through Hole Vertical	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	4 A 6 A	Non-Illuminated	25000 Steps	125 V	DPDT	Brass Nickel Plated	30 V
NKK Switches M2T22S4A5A30	On-On	PC Pin	Through Hole Right Angle	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	4 A 6 A	Non-Illuminated	25000 Steps	125 V	DPDT	Brass Nickel Plated	30 V
NKK Switches M2T22S4A5W13	On-On	PC Pin	Through Hole	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	4 A 6 A	Non-Illuminated	25000 Steps	125 V	DPDT	Brass Nickel Plated	30 V
NKK Switches M2T22S4A5G13	On-On	PC Pin	Through Hole	Process Sealed	7.62 mm	Unthreaded	Standard Round	-30 ░C	85 °C	0.4 VA	Non-Illuminated	50000 Cycles	28 V	DPDT	Brass Nickel Plated	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.29
		10	$ 8.37

Description

General part information

M2T22S4 Series

Toggle Switch DPDT Through Hole, Right Angle
