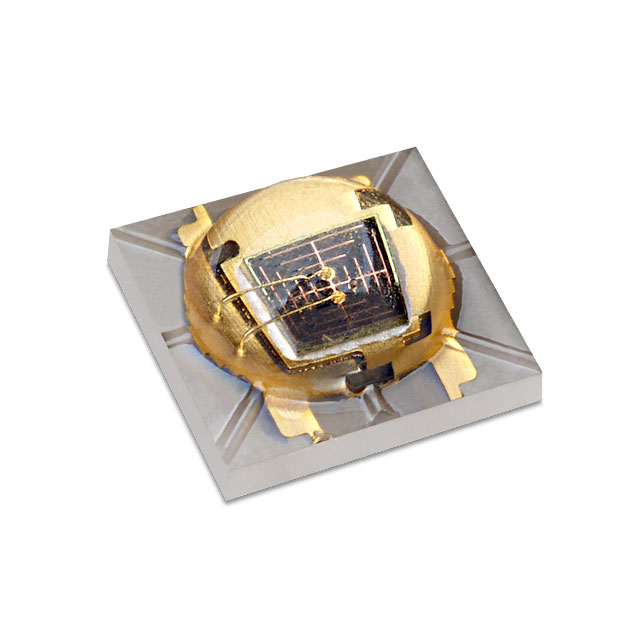

L1I0-0850150000000

Active

Lumileds

INFRARED EMITTER 850NM 335MW/SR CIRCULAR TOP MOUNT 2-PIN SMD EP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Infrared Illumination for Time-of-Flight Applications

L1I0-0850150000000

Active

Lumileds

INFRARED EMITTER 850NM 335MW/SR CIRCULAR TOP MOUNT 2-PIN SMD EP T/R

Deep-Dive with AI

DocumentsDatasheet Infrared Illumination for Time-of-Flight Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1I0-0850150000000

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	335 mW/sr
Type	Infrared (IR)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength	850 nm

L1I0 Series

Part	Wavelength	Current - DC Forward (If) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Voltage - Forward (Vf) (Typ)	Grade	Viewing Angle	Type	Orientation	Qualification	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If	Viewing Angle [custom]	Radiant Intensity (Ie) Min @ If
Lumileds L1I0-A940150020000	945 nm	1.5 A	3-SMD No Lead	125 °C	-40 °C	330 mW/sr	Surface Mount	2.9 V	Automotive	139 °	Infrared (IR)	Top View	AEC-Q102
Lumileds L1I0-0850150000000	850 nm		3-SMD No Lead	85 °C	-30 °C	335 mW/sr	Surface Mount	3.2 V		150 °	Infrared (IR)	Top View		1 A
Lumileds L1I0-0850060200000	850 nm	1.5 A	3-SMD No Lead				Surface Mount			60 °	Infrared (IR)	Top View			1150 mW/sr
Lumileds L1I0-A940090020000	945 nm	1.5 A	3-SMD No Lead	125 °C	-40 °C	740 mW/sr	Surface Mount	2.9 V	Automotive		Infrared (IR)	Top View	AEC-Q102			90 °
Lumileds L1I0-0850150200000	850 nm	1.5 A	3-SMD No Lead			335 mW/sr	Surface Mount			150 °	Infrared (IR)	Top View
Lumileds L1I0-0940150200000	940 nm	1.5 A	3-SMD No Lead				Surface Mount			150 °	Infrared (IR)	Top View					350 mW/sr
Lumileds L1I0-A940145000000	940 nm	1.5 A	3-SMD No Lead	125 °C	-40 °C	320 mW/sr	Surface Mount	2.9 V	Automotive	145 °	Infrared (IR)	Top View	AEC-Q102
Lumileds L1I0-0850060000000	850 nm		3-SMD No Lead	85 °C	-30 °C		Surface Mount	3.2 V		60 °	Infrared (IR)	Top View		1 A	1150 mW/sr
Lumileds L1I0-A940060020000	945 nm	1.5 A	3-SMD No Lead	125 °C	-40 °C	1130 mW/sr	Surface Mount	2.9 V	Automotive	61 °	Infrared (IR)	Top View	AEC-Q102
Lumileds L1I0-0850090200000	850 nm	1.5 A	3-SMD No Lead			750 mW/sr	Surface Mount				Infrared (IR)	Top View				90 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.51
		10	$ 2.48
		100	$ 2.04
		500	$ 1.72
	Digi-Reel®	1	$ 3.51
		10	$ 2.48
		100	$ 2.04
		500	$ 1.72
	Tape & Reel (TR)	1000	$ 1.57
		2000	$ 1.51
		5000	$ 1.48
