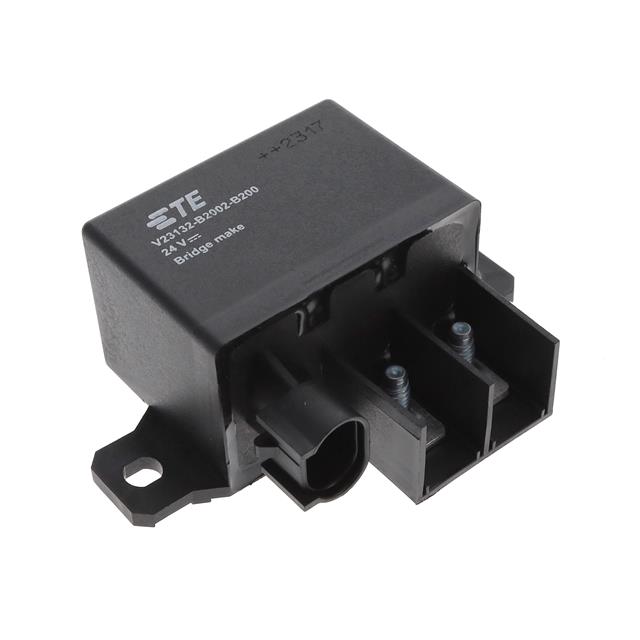

1-1393315-1
ActiveTE Connectivity AMP Connectors
V23132B2002B200=HCR
Deep-Dive with AI
Search across all available documentation for this part.
1-1393315-1
ActiveTE Connectivity AMP Connectors
V23132B2002B200=HCR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1393315-1 | 1393315 Series |
|---|---|---|
| Coil Current | 170.2 mA | 170.2 mA |
| Coil Power | 4.1 W | 3.9 - 4.1 W |
| Coil Resistance | 141 Ohms | 37 - 141 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 12 - 24 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) | SPST-NO (1 Form A), SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 130 A | 130 A |
| Features | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount | Chassis Mount |
| Must Operate Voltage | 14.4 VDC | 7.2 - 14.4 VDC |
| Must Release Voltage | 2.4 VDC | 1.2 - 2.4 VDC |
| Operate Time | 25 ms | 25 ms |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 8 ms | 8 ms |
| Switching Voltage | 24 VDC | 24 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
1393315 Series
RELAY AUTO SPST-NO 130A 12V
| Part | Contact Material | Must Operate Voltage | Operate Time | Contact Rating (Current) | Must Release Voltage | Coil Resistance | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Termination Style | Contact Form | Mounting Type | Coil Voltage | Coil Power | Switching Voltage | Coil Current | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1393315-2 | Silver Tin Oxide (AgSnO) | 7.2 VDC | 25 ms | 130 A | 1.2 VDC | 37 Ohms | 8 ms | 125 °C | -40 °C | Non Latching | Screw Terminal | SPST-NO (1 Form A) | Chassis Mount | 12 VDC | 3.9 W | |||
TE Connectivity AMP Connectors 1-1393315-1 | Silver Tin Oxide (AgSnO) | 14.4 VDC | 25 ms | 130 A | 2.4 VDC | 141 Ohms | 8 ms | 125 °C | -40 °C | Non Latching | Screw Terminal | SPST-NO (DM) (1 Form X) | Chassis Mount | 24 VDC | 4.1 W | 24 VDC | 170.2 mA | IP67 - Dust Tight, Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 101.62 | |
| 10 | $ 95.98 | |||
| 25 | $ 90.33 | |||
| 50 | $ 84.69 | |||
| 100 | $ 79.04 | |||
Description
General part information
1393315 Series
V23132B2002B200=HCR
