CYBLE-202013-EVAL

Active

Infineon Technologies

EZ-BLE PROC EVALUATION BOARD

Search across all available documentation for this part.

Active

Infineon Technologies

EZ-BLE PROC EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	CYBLE-202013-EVAL

For Use With/Related Products	CYBLE-202013-11
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)

Part	For Use With/Related Products	Frequency	Supplied Contents	Type	Antenna Type	Serial Interfaces	Data Rate	Protocol	RF Family/Standard	Mounting Type	Power - Output	Package / Case	Frequency [Min]	Frequency [Max]	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size [custom]	Memory Size [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving	Sensitivity
Infineon Technologies CYBLE-202013-EVAL	CYBLE-202013-11	2.4 GHz	Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Infineon Technologies CYBLE-202013-11					Integrated Trace	I2C I2S SPI UART	1 Mbps	Bluetooth v4.2	Bluetooth	Surface Mount	7.5 dBm	30-SMD Module	2.4 GHz	2.48 GHz	15.6 mA	85 °C	-40 °C	32 kB	256 kB	4.5 V	1.8 V	16.4 mA	-93 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.88

General part information

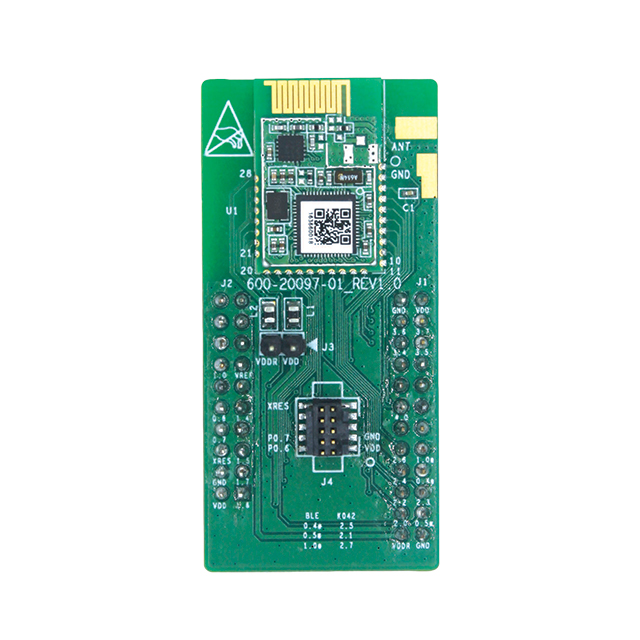

The CYBLE-202013-EVAL EZ-BLE PRoC Evaluation Board enables you to evaluate and develop applications with the CYBLE-202013-11 EZ-BLE PRoC XR Module.
