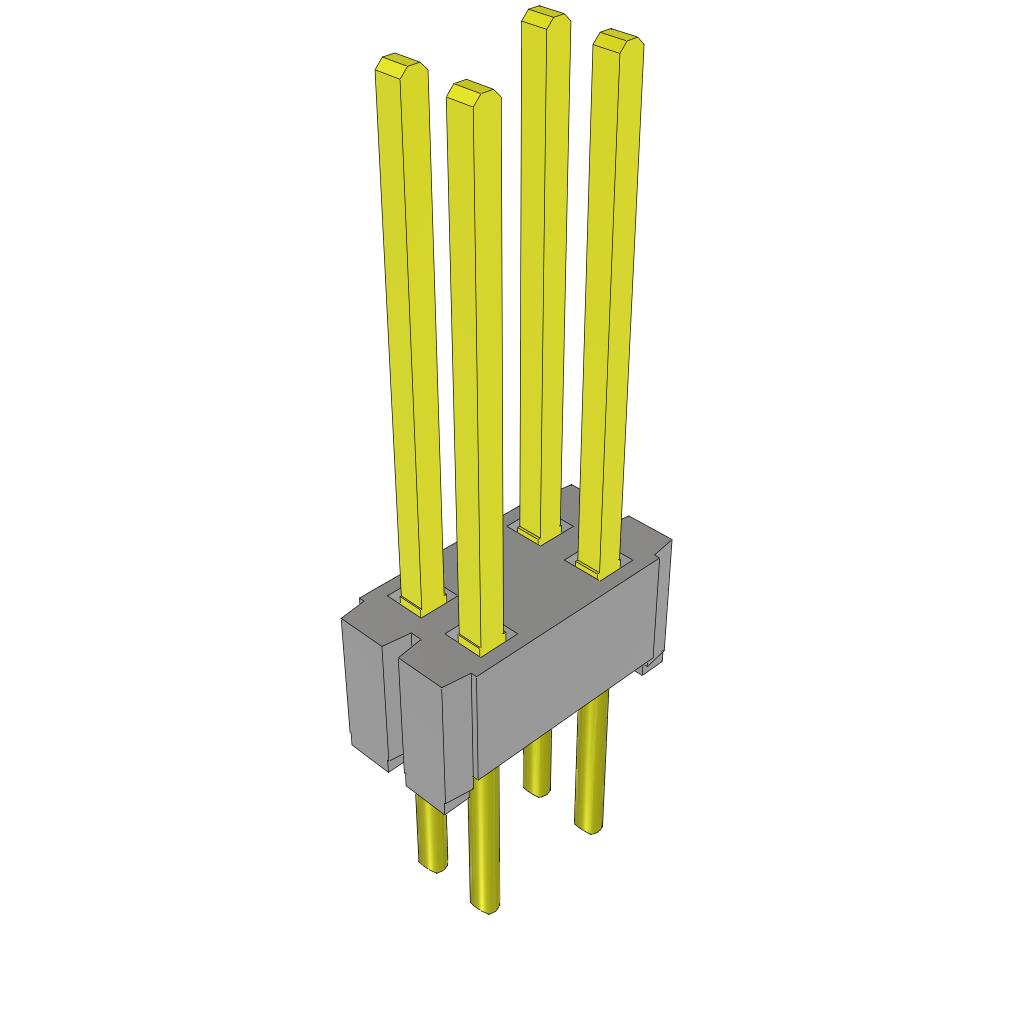

MTMS-102-54-G-D-326

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTMS Datasheet .050" x .100" High-Temp Variable Post Height Micro Terminal Strip +1

MTMS-102-54-G-D-326

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsMTMS Datasheet .050" x .100" High-Temp Variable Post Height Micro Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTMS-102-54-G-D-326

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.326 "
Contact Length - Mating	8.28 mm
Contact Length - Post	3.28 mm
Contact Length - Post	0.129 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.555 in
Overall Contact Length	14.1 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

MTMS-102 Series

Part	Number of Positions Loaded	Contact Shape	Shrouding	Fastening Type	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Insulation Color	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Samtec Inc. MTMS-102-02-G-S-000	All	Square	Unshrouded	Push-Pull	Flash	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	10 çin	0.25 çm	2	Male Pin	0.05 in	1.27 mm	Through Hole	Gold	1	Gold
Samtec Inc. MTMS-102-60-G-S-465	All	Square	Unshrouded	Push-Pull	Flash	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	10 çin	0.25 çm	2	Male Pin	0.05 in	1.27 mm	Through Hole	Gold	1	Gold	0.825 in	20.96 mm	0.26 in	6.6 mm
Samtec Inc. MTMS-102-01-T-S-090	All	Square	Unshrouded	Push-Pull		Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm			2	Male Pin	0.05 in	1.27 mm	Through Hole	Tin	1		0.45 "	11.43 mm	0.26 in	6.6 mm	0.09 in	2.29 mm
Samtec Inc. MTMS-102-25-G-D-125	All	Square	Unshrouded	Push-Pull	Flash	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	10 çin	0.25 çm	4	Male Pin	0.05 in	1.27 mm	Through Hole	Gold	2	Gold	0.33 in	8.38 mm			0.125 in	3.18 mm	2.67 mm	0.105 in	2.54 mm	0.1 in
Samtec Inc. MTMS-102-51-S-D-180	All	Square	Unshrouded	Push-Pull		Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	30 Áin	0.76 Ám	4	Male Pin	0.05 in	1.27 mm	Through Hole	Tin	2	Gold	0.41 in	10.41 mm			0.18 in	4.57 mm	3.3 mm	0.13 in	2.54 mm	0.1 in
Samtec Inc. MTMS-102-01-S-S-125	All	Square	Unshrouded	Push-Pull		Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	30 Áin	0.76 Ám	2	Male Pin	0.05 in	1.27 mm	Through Hole	Tin	1	Gold	0.45 "	11.43 mm	0.225 in	5.72 mm	0.125 in	3.18 mm
Samtec Inc. MTMS-102-01-G-S-230	All	Square	Unshrouded	Push-Pull	Flash	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	10 çin	0.25 çm	2	Male Pin	0.05 in	1.27 mm	Through Hole	Gold	1	Gold	0.45 "	11.43 mm	0.12 in	3.05 mm		5.84 mm					0.23 in
Samtec Inc. MTMS-102-54-G-D-326	All	Square	Unshrouded	Push-Pull	Flash	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	10 çin	0.25 çm	4	Male Pin	0.05 in	1.27 mm	Through Hole	Gold	2	Gold	0.555 in	14.1 mm			0.326 "	8.28 mm	3.28 mm	0.129 "	2.54 mm	0.1 in
Samtec Inc. MTMS-102-25-T-D-125	All	Square	Unshrouded	Push-Pull		Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm			4	Male Pin	0.05 in	1.27 mm	Through Hole	Tin	2		0.33 in	8.38 mm			0.125 in	3.18 mm	2.67 mm	0.105 in	2.54 mm	0.1 in
Samtec Inc. MTMS-102-60-S-S-100	All	Square	Unshrouded	Push-Pull		Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Phosphor Bronze	Solder	Black	Header	0.1 in	2.54 mm	30 Áin	0.76 Ám	2	Male Pin	0.05 in	1.27 mm	Through Hole	Tin	1	Gold	0.825 in	20.96 mm			0.1 in	2.54 mm	15.88 mm	0.625 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.03
		50	$ 0.80
		100	$ 0.65
Digikey	Bulk	1	$ 1.03
