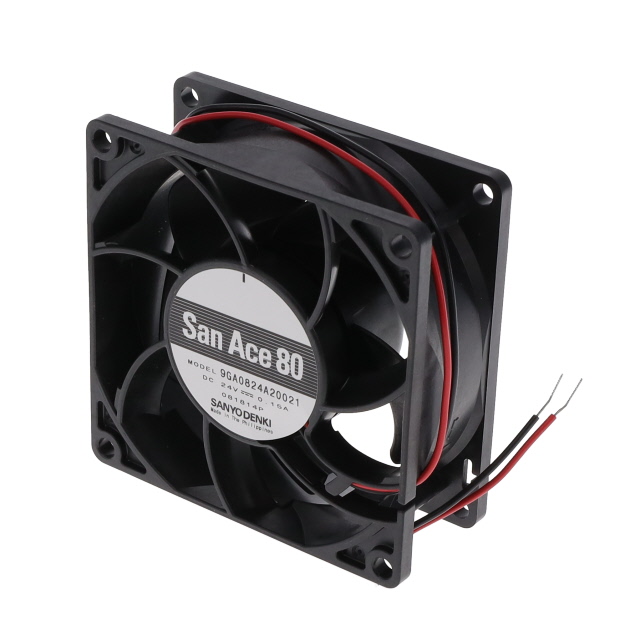

Specification	109P0812M202

Air Flow	23 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	70 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Lifetime	60000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	840 mW
RPM	2000 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.075 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	10.2 VDC
Weight	0.331 lb
Width	32 mm

109P0812 Series

Part	Bearing Type	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Static Pressure	Power (Watts)	Width	Weight	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Noise	Air Flow	Termination Leads Count	Termination Type	Termination	Voltage - Rated	RPM	Fan Type	Features	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Material - Blade	Current Rating	Lifetime
Sanyo Denki America Inc. 109P0812H7D01	Ball	-4 °F	158 °F	CSA TUV UL	0.118 in H2O	2.4 W	15 mm	0.15 lbs	80 mm	Square	80 mm	31 dB	32.1 CFM	3	Wire Leads	3 Wire Leads	12 VAC	3100 RPM	Tubeaxial	Locked Rotor Sensor	13.8 VDC	7 V	Plastic	Plastic	0.2 A	40000 Hrs
Sanyo Denki America Inc. 109P0812M6D01	Ball	-4 °F	158 °F	CSA TUV UL	0.075 in H2O	1.56 W	20 mm	0.222 lb	80 mm	Square	80 mm	25 dB	23.7 CFM	3	Wire Leads	3 Wire Leads	12 VAC	2300 RPM	Tubeaxial	Locked Rotor Sensor	13.8 VDC	10.2 VDC	Plastic	Plastic	0.13 A	60000 Hrs
Sanyo Denki America Inc. 109P0812H602	Ball	-4 °F	158 °F	CSA TUV UL	0.118 in H2O	2.52 w	20 mm	0.222 lb	80 mm	Square	80 mm	31 dB	29.7 CFM	2 leads	Wire Leads	2 Wire Leads	12 VAC	2900 RPM	Tubeaxial	Locked Rotor Protection	13.8 VDC	10.2 VDC	Plastic	Plastic	0.21 A	60000 Hrs
Sanyo Denki America Inc. 109P0812M602	Ball	-4 °F	158 °F	CSA TUV UL	0.075 in H2O	1.56 W	20 mm	0.222 lb	80 mm	Square	80 mm	25 dB	23.7 CFM	2 leads	Wire Leads	2 Wire Leads	12 VAC	2300 RPM	Tubeaxial	Locked Rotor Protection	13.8 VDC	10.2 VDC	Plastic	Plastic	0.13 A	60000 Hrs
Sanyo Denki America Inc. 109P0812M202	Ball	-4 °F	158 °F	CSA TUV UL	0.075 in H2O	840 mW	32 mm	0.331 lb	80 mm	Square	80 mm	21 dB	23 CFM	2 leads	Wire Leads	2 Wire Leads	12 VAC	2000 RPM	Tubeaxial	Locked Rotor Protection	13.8 VDC	10.2 VDC	Plastic	Plastic	70 mA	60000 Hrs
Sanyo Denki America Inc. 109P0812H601	Ball	-4 °F	158 °F	CSA TUV UL	0.118 in H2O	2.52 w	20 mm	0.222 lb	80 mm	Square	80 mm	31 dB	29.7 CFM	3	Wire Leads	3 Wire Leads	12 VAC	2900 RPM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	13.8 VDC	10.2 VDC	Plastic	Plastic	0.21 A	60000 Hrs
Sanyo Denki America Inc. 109P0812M702	Ball	-4 °F	158 °F	CSA TUV UL	0.051 in H2O	1.08 W	15 mm	0.15 lbs	80 mm	Square	80 mm	21 dB	20.1 CFM	2 leads	Wire Leads	2 Wire Leads	12 VAC	2000 RPM	Tubeaxial	Locked Rotor Protection	13.8 VDC	7 V	Plastic	Plastic	0.09 A	60000 Hrs
Sanyo Denki America Inc. 109P0812H702	Ball	-4 °F	158 °F	CSA TUV UL	0.118 in H2O	2.4 W	15 mm	0.15 lbs	80 mm	Square	80 mm	31 dB	32.1 CFM	2 leads	Wire Leads	2 Wire Leads	12 VAC	3100 RPM	Tubeaxial	Locked Rotor Protection	13.8 VDC	7 V	Plastic	Plastic	0.2 A	40000 Hrs
Sanyo Denki America Inc. 109P0812C601	Ball	-20 °C	60 °C	CSA TUV UL	0.185 in H2O	3.48 W	20 mm	0.222 lb	80 mm	Square	80 mm	39 dB	37.8 CFM	3	Wire Leads	3 Wire Leads	12 VAC	3700 RPM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	13.8 VDC	10.2 VDC	Plastic	Plastic	0.29 A	60000 Hrs
Sanyo Denki America Inc. 109P0812C6D01	Ball	-20 °C	60 °C	CSA TUV UL	0.185 in H2O	3.48 W	20 mm	0.222 lb	80 mm	Square	80 mm	39 dB	37.8 CFM	3	Wire Leads	3 Wire Leads	12 VAC	3700 RPM	Tubeaxial	Locked Rotor Sensor	13.8 VDC	10.2 VDC	Plastic	Plastic	0.29 A	60000 Hrs
