L717SDAH15POL2C309

Active

Amphenol ICC (Commercial Products)

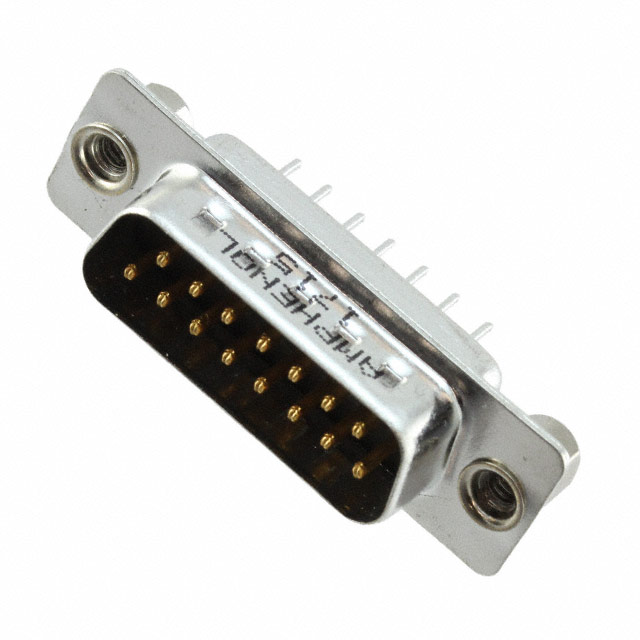

CONN D-SUB PLUG 15POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDAH15POL2C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDAH15POL2C309

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

L717SDAH15 Series

Part	Contact Type	Termination	Contact Finish Thickness	Connector Style	Dielectric Material	Mounting Type	Connector Type	Flange Feature	Color	Contact Material	Contact Form	Voltage Rating	Shell Size, Connector Layout	Current Rating (Amps)	Material Flammability Rating	Features	Number of Positions	Number of Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDAH15POL2RM8G	Signal	Solder	Flash	D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Board Lock Grounding Indents	15	2	Gold	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDAH15POL2RM8C309	Signal	Solder		D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Board Lock Grounding Indents	15	2	Gold	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDAH15PC309	Signal			D-Sub	Thermoplastic Glass Filled	Free Hanging (In-Line)	Male Pins Plug	Cable Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Grounding Indents	15	2	Gold	-55 °C	105 ░C	0.76 Ám	30 Áin	20 AWG
Amphenol ICC (Commercial Products) L717SDAH15POL2C309	Signal	Solder		D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	4-40 Board Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Grounding Indents	15	2	Gold	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDAH15POL2RM5GC309	Signal	Solder		D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	4-40 Board Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Board Lock Grounding Indents	15	2	Gold	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDAH15P	Signal		Flash	D-Sub	Thermoplastic Glass Filled	Free Hanging (In-Line)	Male Pins Plug	Cable Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Grounding Indents	15	2	Gold	-55 °C	105 ░C			20 AWG
Amphenol ICC (Commercial Products) L717SDAH15POL2G	Signal	Solder	Flash	D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	4-40 Board Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Grounding Indents	15	2	Gold	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDAH15POL2RM5C309	Signal	Solder		D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	4-40 Board Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Board Lock Grounding Indents	15	2	Gold	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDAH15POL2RM8	Signal	Solder	Flash	D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Board Lock Grounding Indents	15	2	Gold	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDAH15POL2GC309	Signal	Solder		D-Sub	Thermoplastic Glass Filled	Through Hole	Male Pins Plug	4-40 Board Side	Black	Brass	Stamped	250 VDC	2	3 A	UL94 V-0	Grounding Indents	15	2	Gold	-55 °C	125 °C	0.76 Ám	30 Áin
