SSQ-127-01-L-D

Active

Samtec Inc.

CONN RCPT 54POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSQ-127-01-L-D

Active

Samtec Inc.

CONN RCPT 54POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-127-01-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-127 Series

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Voltage Rating	Fastening Type	Contact Type	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Mounting Type	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Rows	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SSQ-127-22-G-T	Gold	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze	2.54 mm	0.1 in	0.51 µm	20 µin	Board to Board Cable	Through Hole	81	4.93 mm	0.194 in	Square	UL94 V-0	0.1 in	2.54 mm	3 µin	0.076 µm	Black	3	Gold
Samtec Inc. SSQ-127-03-T-S-RA	Tin	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)			All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze					Board to Board Cable	Through Hole Right Angle	27			Square	UL94 V-0	0.1 in	2.54 mm			Black	1		7.62 mm	0.3 "	0.095 in	2.41 mm
Samtec Inc. SSQ-127-02-T-S-RA	Tin	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)			All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze					Board to Board Cable	Through Hole Right Angle	27	2.54 mm	0.1 in	Square	UL94 V-0	0.1 in	2.54 mm			Black	1				0.095 in	2.41 mm
Samtec Inc. SSQ-127-03-S-S-RA	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)			All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze			0.76 Ám	30 Áin	Board to Board Cable	Through Hole Right Angle	27			Square	UL94 V-0	0.1 in	2.54 mm			Black	1	Gold	7.62 mm	0.3 "	0.095 in	2.41 mm
Samtec Inc. SSQ-127-02-G-S	Gold	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze			0.51 µm	20 µin	Board to Board Cable	Through Hole	27	4.93 mm	0.194 in	Square	UL94 V-0	0.1 in	2.54 mm	3 µin	0.076 µm	Black	1	Gold
Samtec Inc. SSQ-127-03-G-D	Gold	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze	2.54 mm	0.1 in	0.51 µm	20 µin	Board to Board Cable	Through Hole	54	10 mm	0.394 in	Square	UL94 V-0	0.1 in	2.54 mm	3 µin	0.076 µm	Black	2	Gold
Samtec Inc. SSQ-127-03-G-S-RA	Gold	-55 °C	125 °C	Liquid Crystal Polymer (LCP)			All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze			0.51 µm	20 µin	Board to Board Cable	Through Hole Right Angle	27			Square	UL94 V-0	0.1 in	2.54 mm	3 µin	0.076 µm	Black	1	Gold	7.62 mm	0.3 "	0.095 in	2.41 mm
Samtec Inc. SSQ-127-01-L-D	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze	2.54 mm	0.1 in	0.25 çm	10 çin	Board to Board Cable	Through Hole	54	2.64 mm	0.104 in	Square	UL94 V-0	0.1 in	2.54 mm			Black	2	Gold
Samtec Inc. SSQ-127-02-S-S-RA	Tin	-55 °C	125 °C	Liquid Crystal Polymer (LCP)			All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze			0.76 Ám	30 Áin	Board to Board Cable	Through Hole Right Angle	27	2.54 mm	0.1 in	Square	UL94 V-0	0.1 in	2.54 mm			Black	1	Gold			0.095 in	2.41 mm
Samtec Inc. SSQ-127-03-T-D-RA	Tin	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	0.195 in	4.95 mm	All	Receptacle	465 VAC 655 VDC	Push-Pull	Forked	Solder	Phosphor Bronze	2.54 mm	0.1 in			Board to Board Cable	Through Hole Right Angle	54			Square	UL94 V-0	0.1 in	2.54 mm			Black	2		7.62 mm	0.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.30
		10	$ 6.75
		25	$ 6.38
		50	$ 6.15
		100	$ 5.72

Description

General part information

SSQ-127 Series

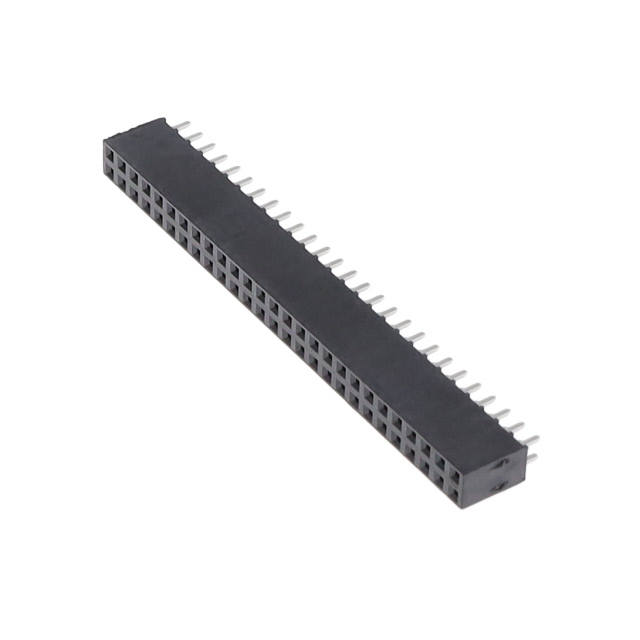

54 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
