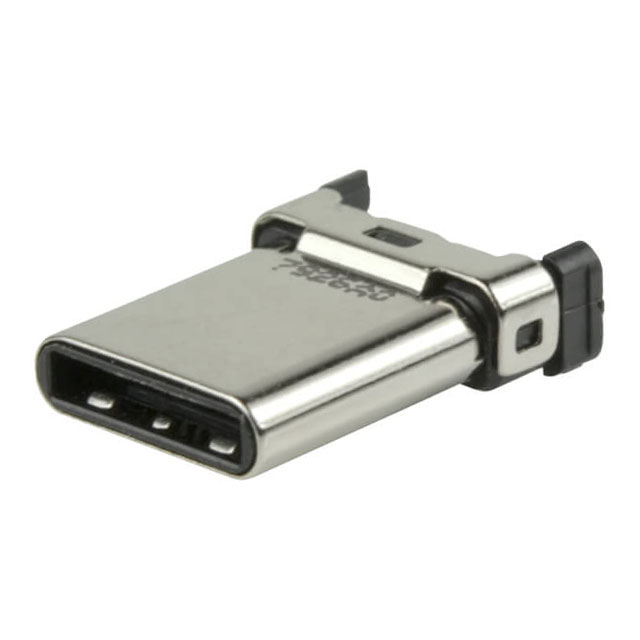

UP31-CV-G-CM

Active

CUI Devices

CONN PLUG USB3.1 TYPEC BRD EDGE

Search across all available documentation for this part.

Active

CUI Devices

CONN PLUG USB3.1 TYPEC BRD EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	UP31-CV-G-CM

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	6.25 A, 5 A, 1.25 A, 0.25 A
Gender	Plug
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Type	Board Edge, Straddle Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

CONN PLUG USB3.1 TYPEC BRD EDGE

Part	Number of Contacts	Number of Ports	Contact Finish	Gender	Shell/Shielding Material	Mating Cycles	Current Rating (Amps)	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Specifications	Material Flammability Rating	Connector Type
CUI Devices UP31-CV-G-CM	24	1	Gold	Plug	Stainless, Steel	10000	0.25 A, 1.25 A, 5 A, 6.25 A	Shielded	-30 ░C	85 °C	Board Edge, Straddle Mount	Solder	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	UL94 V-0	USB-C (USB TYPE-C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
