A850497925W04

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ25 J OLIV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A850497925W04

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ25 J OLIV

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.53
		10	$ 68.40

Description

General part information

M85049 Series

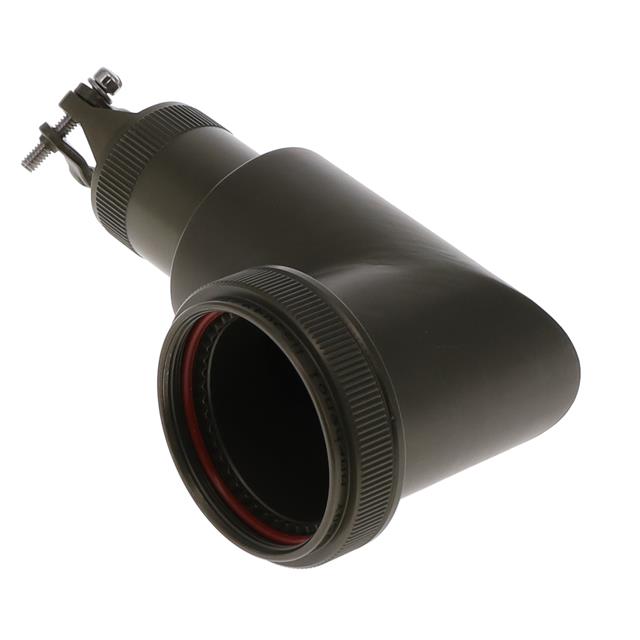

Olive Drab Connector Backshell, Cable Clamp 25, J

Documents

Technical documentation and resources

Datasheet

Specification	A850497925W04	M85049 Series

	-	-
Cable Exit	90 °	45 - 180 °
Cable Opening	-	0.38 - 31.75 mm
Cable Opening	-	0.13 - 1.25 in
Cable Opening	-	5.18 - 38.1 mm
Cable Opening	-	0.204 - 1.5 in
Cable Opening	-	3.18 - 23.88 mm
Cable Opening	-	0.125 - 0.94 in
Cable Opening	-	0.42 - 47.75 mm
Cable Opening	-	0.44 - 1.88 in
Cable Opening	-	0.94 - 1.38 in
Cable Opening	-	10.67 - 21.59 mm
Cable Opening	-	2.54 - 4.83 mm
Cable Opening	-	8.38 mm
Cable Opening	-	12.19 - 19.05 mm
Cable Opening	-	0.82 - 27.43 in
Cable Opening	-	23.88 mm
Cable Opening	-	0.23 in
Cable Opening	-	0.1 in
Cable Opening	-	5.84
Cable Opening [Max] [custom]	12.7 mm	5.08 - 44.45 mm
Cable Opening [Max] [custom]	0.5 in	0.2 - 1.75 in
Cable Opening [Min] [custom]	9.65 mm	3.3 - 30.23 mm
Cable Opening [Min] [custom]	0.38 in	0.13 - 1.19 in
Color	Olive Drab	Silver, Olive, Olive Drab, Black
Diameter - Outside	-	41.66 mm
Diameter - Outside [diameter]	1.85 "	0.62 - 3.39 in
Diameter - Outside [diameter]	46.99 mm	1.64 - 86.11 mm
Features	Clamp Screws	Clamp Screws, Self-Locking, Strain Relief, Self Locking, Rotatable
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400, MIL-DTL-38999 Series III, IV, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-38999 Series I, II, MS "V" Thread General Duty "A" Endbell
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy, Stainless Steel
Plating	Cadmium	Electroless Nickel, Cadmium Nickel, Cadmium, Anodized
Primary Material	Metal	Metal
Shell Size - Insert	J	H, C, 12, 14, J, F, D, B, G, 17, E, 27, 18, 10SL, 10S
Shell Size - Insert	25	7 - 48
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded, Unshielded
Thread Size	-	1-20 UNEF, 1/2-20 UNF, 3/4-20 UNEF, 2 1/2-16 UN, 2 1/4-16 UN, 2-18 UNS, 7/8-20 UNEF, UNEF, 5/8-24 UNEF, 1 7/16-18 UNEF, 1 3/16-18 UNEF, 2 3/4-16 UN, 1 5/16-18 UNEF, 3-16 UN
Thread Size	-	18
Type	Backshell, Cable Clamp	Cable Clamp, Backshell, Backshell, Heat Shrink Adapter, Banding, E Nut
