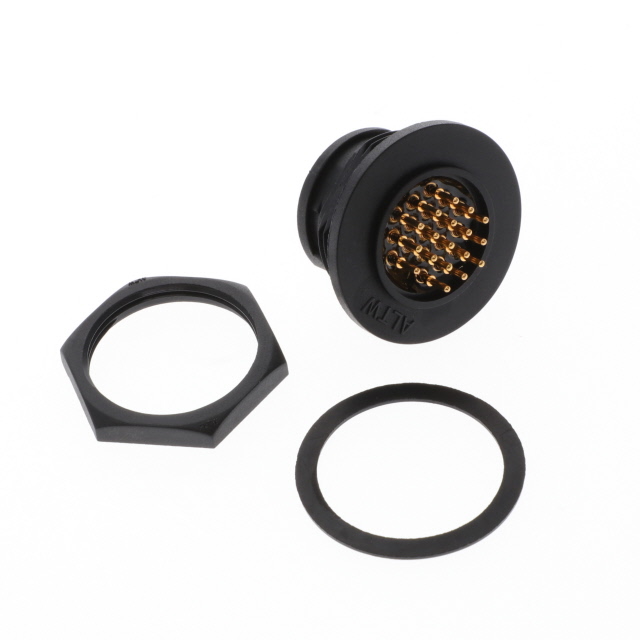

DD-18PMMP-LC7001

Active

Amphenol LTW

CONN RCPT MALE 18POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 18POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	DD-18PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Solder

Part	Color	Primary Material	Termination	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Fastening Type	Number of Positions	Shielding	Mounting Feature	Current Rating (Amps)	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Material	Connector Type	Ingress Protection	Voltage Rating	Insert Material
Amphenol LTW DD-18PMMP-LC7001	Black	Plastic	Solder	Gold	D	Panel Mount Through Hole	Bayonet Lock	18	Unshielded	Bulkhead - Front Side Nut	5 A	Keyed	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Male Pins Receptacle	IP67 - Dust Tight Waterproof
Amphenol LTW DD-18PMMP-LS7001	Black	Plastic	Solder	Gold	D	Panel Mount Through Hole	Bayonet Lock	18	Unshielded	Flange	5 A	Keyed	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Male Pins Receptacle	IP67 - Dust Tight Waterproof	250 VDC	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder
