Q-0F02G000H036i

Active

Amphenol Custom Cable

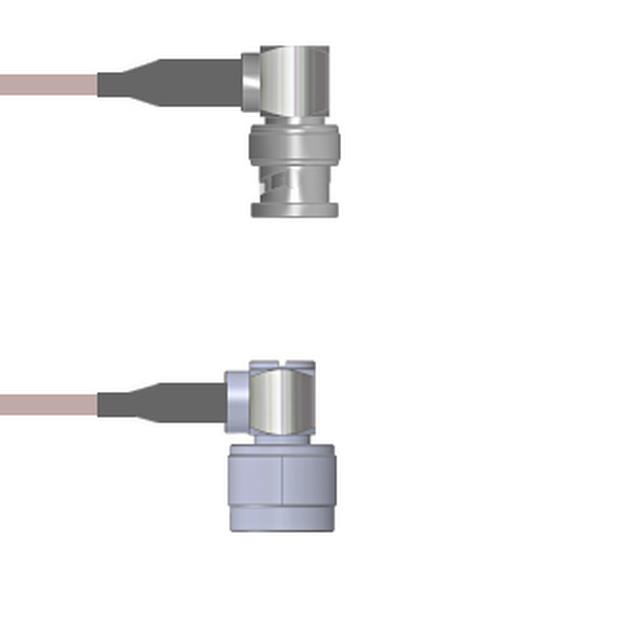

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F02G000H036i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F02G000H036i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0F02G0 Series

Part	1st Contact Gender	2nd Connector	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	Color	Style	Overall Impedance	2nd Contact Gender	Features	Length	Length	1st Connector Mounting Type	Cable Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0F02G000H036i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	91.44 cm	36 in	Free Hanging (In-Line)	RG-142
Amphenol Custom Cable Q-0F02G000H2.5M	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	2.5 m	98.4 in	Free Hanging (In-Line)	RG-142	8.2 '
Amphenol Custom Cable Q-0F02G000H018i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded			Free Hanging (In-Line)	RG-142		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F02G000H1.5M	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	1.5 m	59.1 in	Free Hanging (In-Line)	RG-142	4.9 ft
Amphenol Custom Cable Q-0F02G000H048i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	1200 mm	48 in	Free Hanging (In-Line)	RG-142	4 ft
Amphenol Custom Cable Q-0F02G000H108i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	2.7 m	108 in	Free Hanging (In-Line)	RG-142	9 ft
Amphenol Custom Cable Q-0F02G000H002M	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	2 m	78.7 in	Free Hanging (In-Line)	RG-142	6.6 ft
Amphenol Custom Cable Q-0F02G000H072i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	1.8 m	72 in	Free Hanging (In-Line)	RG-142	6 ft
Amphenol Custom Cable Q-0F02G000H009i	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	228.6 mm	9 "	Free Hanging (In-Line)	RG-142
Amphenol Custom Cable Q-0F02G000H003M	Male	N-Type Plug Right Angle	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	Copper	BNC to N-Type	50 Ohms	Male	Shielded	3 m	118.1 in	Free Hanging (In-Line)	RG-142	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 122.92
		25	$ 120.52
		50	$ 118.13
		100	$ 115.74
		250	$ 113.34

Description

General part information

Q-0F02G0 Series

Cable Assembly Coaxial BNC to N-Type RG-142 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
