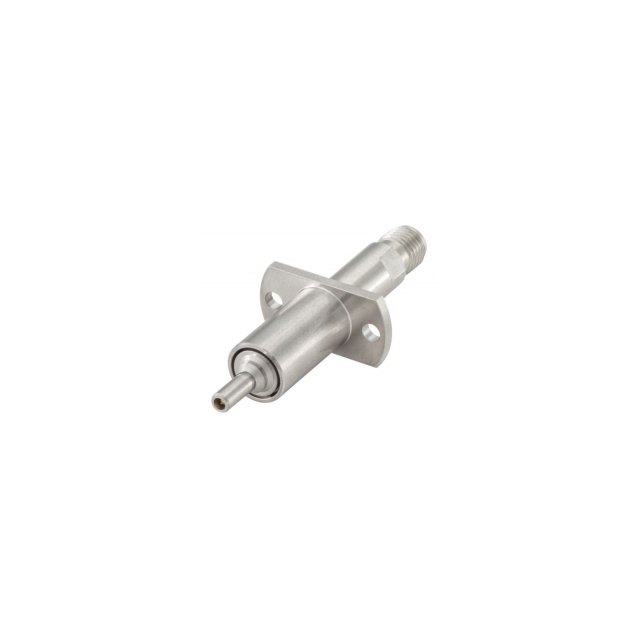

17K732-K0AS5

Active

Rosenberger

LONGWIPE SMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

LONGWIPE SMP ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	17K732-K0AS5

Adapter Series	SMA to SMP
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Insertion Loss	0.12 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Body Material	Frequency - Max [Max]	Impedance	Convert To (Adapter End)	Mating Cycles	Insertion Loss	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Style	Fastening Type	Center Contact Plating	Conversion Type	Convert From (Adapter End)	Dielectric Material	Adapter Type	Center Contact Material	Center Gender	Mounting Type	Body Finish
Rosenberger 17K732-K0AS5	Brass	6000 MHz	50 Ohms	Female Socket SMP Jack	1000	0.12 dB	SMA to SMP	85 °C	-40 °C	Straight	Snap-On Threaded	Gold	Between Series	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Jack to Jack	Beryllium Copper	Female to Female	Free Hanging (In-Line)	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 162.06

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
