Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.68 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.68 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 2500 | $ 0.30 | ||
| 5000 | $ 0.28 | |||
| 12500 | $ 0.26 | |||
| 25000 | $ 0.26 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.03 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.48 | |||
Description
General part information
STPST5 Series
This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-in-class VF/IR trade-off for a given silicon surface.

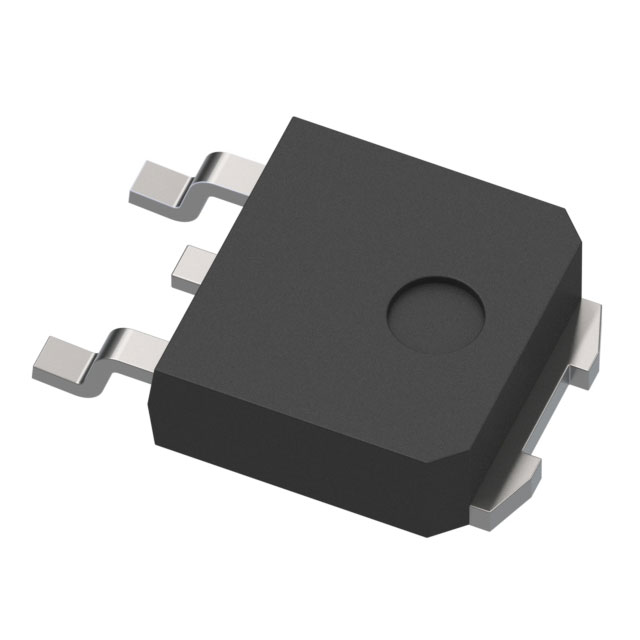

Integrated in a DPAK package, this STPST5H100SB trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is also an ideal candidate for auxiliary power supply in telecom, server, or smart metering. ST trench rectifiers are adapted to freewheeling, OR-ring or reverse polarity protection applications, and can be the perfect companion device to our transistors, drivers, or ST VIPer products.
