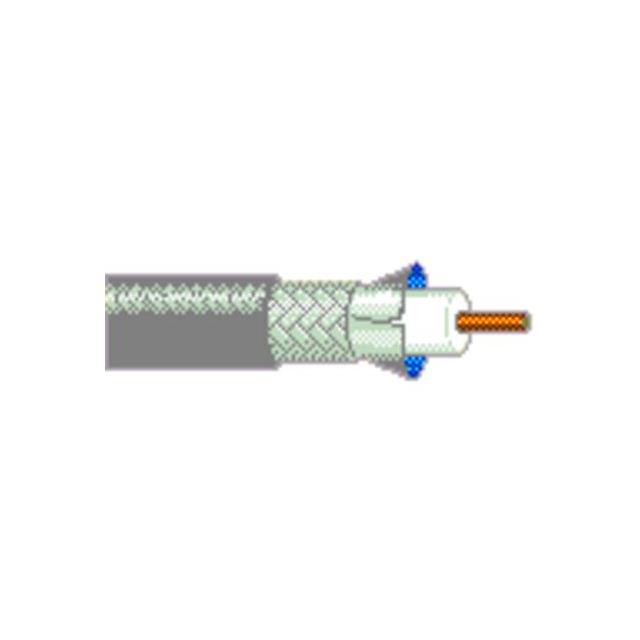

735C1 0083000

Active

Belden Inc.

#25H LDPE/FHDLDPE SH FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

#25H LDPE/FHDLDPE SH FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	735C1 0083000

Cable Group	RG-59 Mini
Cable Type	Coaxial - Riser
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.077 "
Dielectric Diameter [diameter]	1.96 mm
Features	Rip Cord
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	3000 '
Length [x]	914.4 m
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Datacom
VoP, Velocity of Propagation	79
Wire Gauge	25 AWG

Part	Wire Gauge	Shield Coverage	Jacket (Insulation) Material	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Features	VoP, Velocity of Propagation	Shield Type	Jacket Color	Cable Group	Conductor Strand	Length [x]	Length [x]	Usage	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Cable Type
Belden Inc. 735C1 0083000	25 AWG	95 % 100 %	Poly-Vinyl Chloride (PVC)	Aluminum Polyester Copper Tinned	0.077 "	1.96 mm	Rip Cord	79	Braid Foil	Gray	RG-59 Mini	Solid	3000 '	914.4 m	Datacom	Copper Covered Silver Coated Steel	-40 °C	75 ░C	75 Ohms	Coaxial - Riser

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Riser Cable 25 AWG RG-59 Mini 3000.0' (914.40m) 75 Ohms
