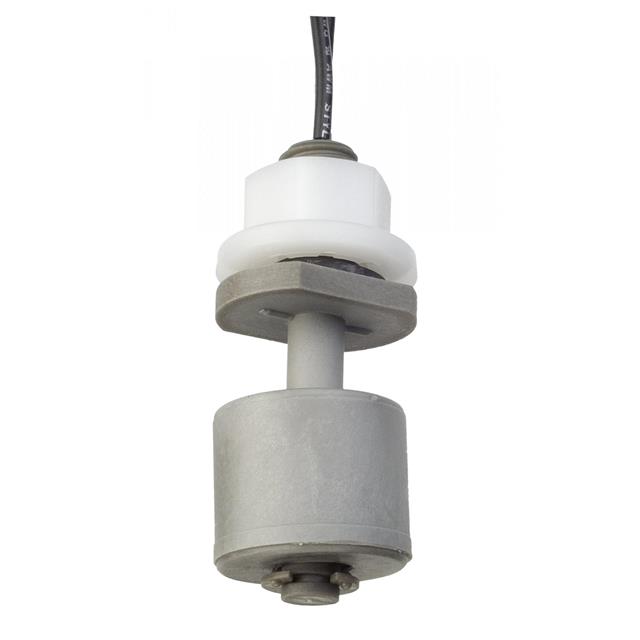

RSF56Y100TB

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF56Y100TB

Current	600 mA
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	Panel Mount, M12x1.75 Thread
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Switch Actuation Level	20.5 mm, 9.5 mm
Switch Actuation Level	0.374 in, 0.807 in
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Minimum Liquid Specific Gravity [Min]	Current	Mounting Type	Voltage Rating	Material - Housing & Prism	Switch Actuation Level	Switch Actuation Level	Type
Sensata Technologies RSF56Y100TB	-10 °C	120 °C	SPST-NC/NO	0.85	600 mA	Panel Mount M12x1.75 Thread	120 VDC 240 VAC	Polyphenylene Sulphide (PPS)	9.5 mm 20.5 mm	0.374 in 0.807 in	Liquid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 31.61

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M12x1.75 Thread

Technical documentation and resources

No documents available
