4534-832-B-5

Active

RAF Electronic Hardware

1/4 HEX X 1/2 LENGTH

Search across all available documentation for this part.

Active

RAF Electronic Hardware

1/4 HEX X 1/2 LENGTH

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Length - Overall	Length - Overall	Length - Overall	Threaded/Unthreaded	Material	Type	Plating	Color	Diameter - Outside	Diameter - Outside	Diameter - Outside [custom]	Screw, Thread Size	Between Board Height	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]
RAF Electronic Hardware 4534-832-B-12	Female Male	22.23 mm	0.875 in	0.875 in	Threaded	Brass	Hex Standoff	Chromate Zinc	Clear	6.35 mm	0.25 in	0.25 in	#8-32	0.5 in	12.7 mm	0.5 in
RAF Electronic Hardware 4534-832-B	Female Male	22.23 mm	0.875 in	0.875 in	Threaded	Brass	Hex Standoff						#8-32	0.5 in	12.7 mm	0.5 in	6.35 mm	0.25 in	0.25 in
RAF Electronic Hardware 4534-832-B-5	Female Male	22.23 mm	0.875 in	0.875 in	Threaded	Brass	Hex Standoff	Nickel					#8-32	0.5 in	12.7 mm	0.5 in	6.35 mm	0.25 in	0.25 in
RAF Electronic Hardware 4534-832-SS	Female Male	22.23 mm	0.875 in	0.875 in	Threaded	Stainless Steel	Hex Standoff			6.35 mm	0.25 in	0.25 in	#8-32	0.5 in	12.7 mm	0.5 in
RAF Electronic Hardware 4534-832-S-12	Female Male	22.23 mm	0.875 in	0.875 in	Threaded		Hex Standoff	Zinc		6.35 mm	0.25 in	0.25 in	#8-32	0.5 in	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

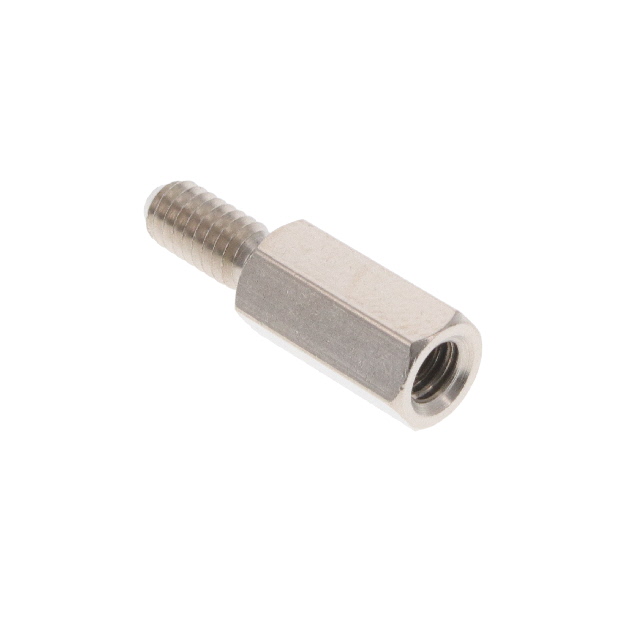

Hex Standoff Threaded #8-32 Brass 0.500" (12.70mm) 1/2"

Technical documentation and resources
