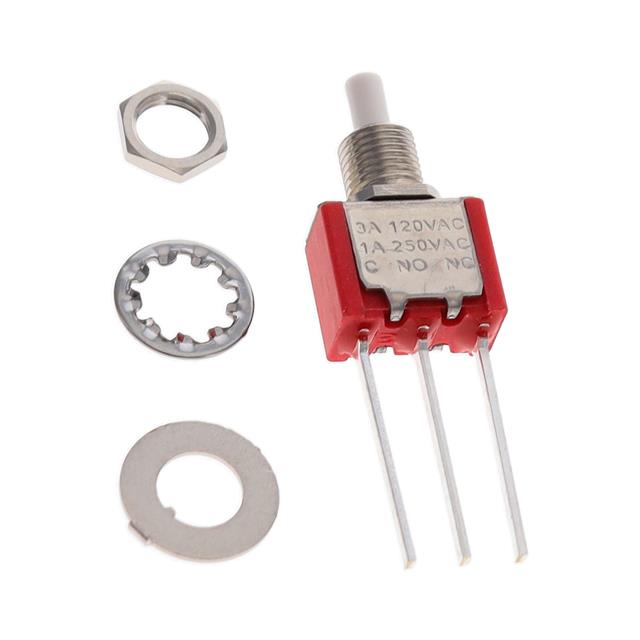

700SP7B11M51QEH

Active

E-Switch

SWITCH PUSHBUTTON SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

700SP7B11M51QEH

Active

E-Switch

SWITCH PUSHBUTTON SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	700SP7B11M51QEH

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Wire Wrap
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

700SP7 Series

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Circuit	Termination Style	Current Rating (Amps)	Type	Actuator Type	Switch Function	Actuator Marking	Color - Actuator/Cap	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [diameter]
E-Switch 700SP7B21VS3RE	20 V	-30 ░C	85 °C	20 V	Through Hole	SPDT	PC Pin	0.4 VA	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles
E-Switch 700SP7M1REAP2WHTWHT	20 V	-30 ░C	85 °C	20 V	Panel Mount Snap-In	SPDT	Solder Lug	0.4 VA	Standard	Button Square	On-Mom	No Marking	White	50000 Cycles	15.7 mm	12.7 mm
E-Switch 700DP7B10M6QEH	28 V	-30 ░C	85 °C	120 V	Panel Mount Rear Right Angle	DPDT	PC Pin	3 A	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles			0.25 in
E-Switch 700SP7M1QEAP2BLKBLK	28 V	-30 ░C	85 °C	120 V	Panel Mount Snap-In	SPDT	Solder Lug	3 A	Standard	Button Square	On-Mom	No Marking	Black	50000 Cycles	15.7 mm	12.7 mm
E-Switch 700SP7B20M7QE	28 V	-30 ░C	85 °C	120 V	Right Angle Through Hole Vertical	SPDT	PC Pin	3 A	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles
E-Switch 700SP7B21VS2QEC2BLK	28 V	-30 ░C	85 °C	120 V	Through Hole	SPDT	PC Pin	3 A	Standard	Button Round	On-Mom	No Marking	Black	50000 Cycles
E-Switch 700SP7B10VS3REH	20 V	-30 ░C	85 °C	20 V	Panel Mount Rear	SPDT	PC Pin	0.4 VA	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles			0.25 in
E-Switch 700SP7B10VS5REH	20 V	-30 ░C	85 °C	20 V	Panel Mount Rear	SPDT	PC Pin	0.4 VA	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles			0.25 in
E-Switch 700SP7B21VS2RE	20 V	-30 ░C	85 °C	20 V	Through Hole	SPDT	PC Pin	0.4 VA	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles
E-Switch 700SP7B11M51QEH	28 V	-30 ░C	85 °C	120 V	Panel Mount Rear	SPDT	Wire Wrap	3 A	Standard	Round Plunger	On-Mom	No Marking	White	50000 Cycles			0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.01
		10	$ 3.58
		33	$ 3.39
		66	$ 3.27
		132	$ 3.11
		264	$ 3.06

Description

General part information

700SP7 Series

Pushbutton Switch SPDT Standard Panel Mount, Rear

Documents

Technical documentation and resources

No documents available
