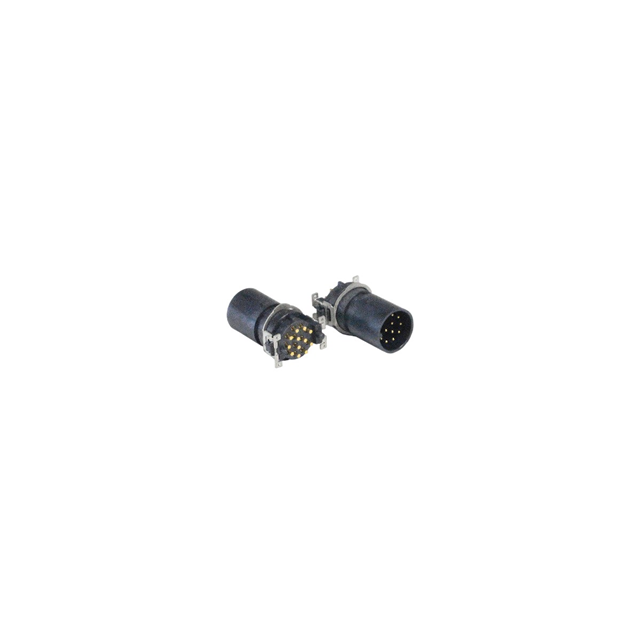

Specification	PXPLCP12SMM12APC

Applications	Medical, Industrial, Instrumentation
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	1.5 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Right Angle, Surface Mount
Number of Positions	12
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shell Size - Insert	M12-12
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 V

PXPLCP12 Series

Part	Orientation	Mounting Type	Fastening Type	Shell Material	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Current Rating	Voltage Rating	Applications	Termination	Shell Size - Insert	Number of Positions	Primary Material	Connector Type	Contact Finish - Mating	Contact Material
BULGIN LIMITED PXPLCP12SMF08XPC	X	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	2 A	30 V	Industrial Instrumentation Medical	Solder	M12-8	8	Plastic	Female Sockets Plug	Gold	Phosphor Bronze
BULGIN LIMITED PXPLCP12SMM04APC	A	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	4 A	250 V	Industrial Instrumentation Medical	Solder	M12-4	4	Plastic	Male Pins Receptacle	Gold	Brass
BULGIN LIMITED PXPLCP12SMM05APC	A	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	4 A	60 V	Industrial Instrumentation Medical	Solder	M12-5	5	Plastic	Male Pins Receptacle	Gold	Brass
BULGIN LIMITED PXPLCP12SMM08APC	A	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	2 A	30 V	Industrial Instrumentation Medical	Solder	M12-8	8	Plastic	Male Pins Receptacle	Gold	Brass
BULGIN LIMITED PXPLCP12SMF08APC	A	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	2 A	30 V	Industrial Instrumentation Medical	Solder	M12-8	8	Plastic	Female Sockets Plug	Gold	Phosphor Bronze
BULGIN LIMITED PXPLCP12SMM12APC	A	Right Angle Surface Mount	Threaded	Liquid Crystal Polymer (LCP)	-25 °C	80 °C	Dust Tight Waterproof	IP67	Unshielded	1.5 A	60 V	Industrial Instrumentation Medical	Solder	M12-12	12	Plastic	Male Pins Receptacle	Gold	Brass
