HEEE-040-F
ActiveTE Connectivity AMP Connectors

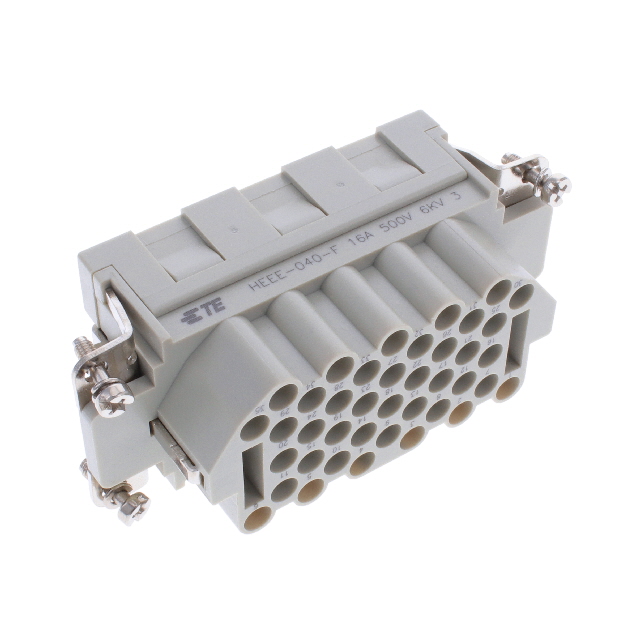

INSERT FML 40POS+1GND HEEE-040-F
Deep-Dive with AI
Search across all available documentation for this part.
HEEE-040-F
ActiveTE Connectivity AMP Connectors
INSERT FML 40POS+1GND HEEE-040-F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-040-F |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEF, DEF |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 40+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.30 | |
| 10 | $ 16.93 | |||
| 25 | $ 16.48 | |||
| 50 | $ 15.67 | |||
| 100 | $ 14.14 | |||
| 250 | $ 14.05 | |||
| 500 | $ 12.25 | |||
HEEE-04 Series
INSERT FML 40POS+1GND HEEE-040-F
| Part | Contact Type | Voltage Rating | Size | Gender | Current Rating (Amps) | Connector Type | Number of Positions | Housing Material | Termination Style | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-040-F | CEF, DEF | 500 V | H16B | Female | 16 A | Insert without Contacts | 40+Ground | Polycarbonate (PC) | Crimp | EN45545 | 125 °C | -40 °C |
Description
General part information
HEEE-04 Series
Female Insert without Contacts 40+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
