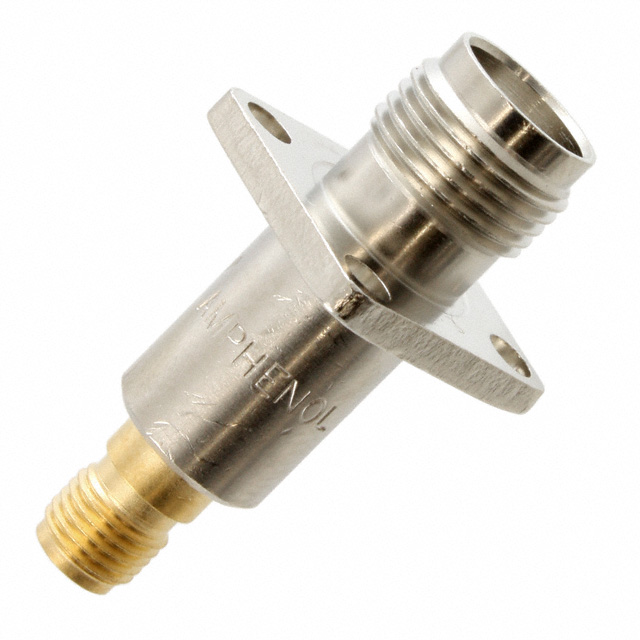

901-280
ActiveAmphenol RF
CONN TNC-SMA ADAPTER 0HZ TO 12.4GHZ 50OHM ST FLANGE MOUNT RCP/RCP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
901-280
ActiveAmphenol RF
CONN TNC-SMA ADAPTER 0HZ TO 12.4GHZ 50OHM ST FLANGE MOUNT RCP/RCP GOLD
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-280 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel, Gold |
| Body Material | Beryllium Copper, Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
901-28 Series
The 901-280 is a SMA Jack to TNC Jack Adapter with gold-plated beryllium copper contacts. This adapter is made of brass with nickel plated finish and comes with a PTFE insulator.
