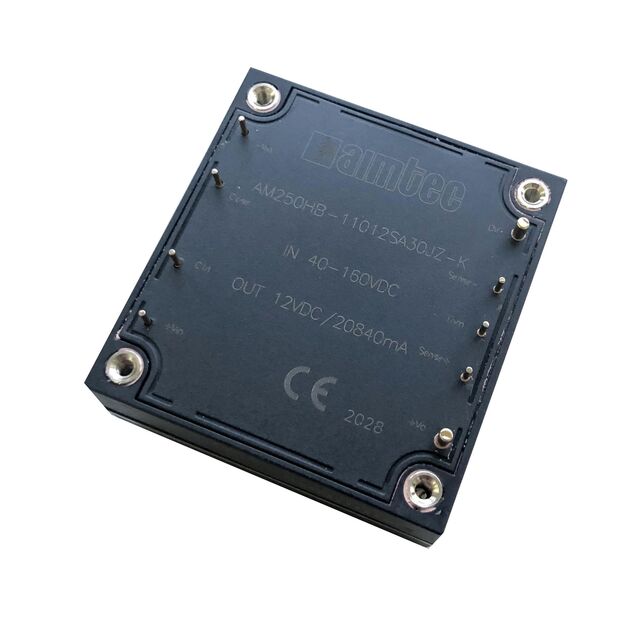

AM250HB-11005SA30JZ

Active

aimtec

DC DC CONVERTER 5V 200W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 200W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM250HB-11005SA30JZ	AM250HB Series

Applications	Industrial, Railway	Industrial, Railway
Current - Output (Max) [Max]	40 A	40 A
Efficiency	88 %	88 - 90 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense, Heatsink
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Half Brick	Half Brick
Power (Watts)	200 W	200 - 250 W
Size / Dimension [x]	2.4 in	2.4 - 2.44 in
Size / Dimension [x]	61 mm	61 - 62 mm
Size / Dimension [y]	57.9 mm	57.9 - 58 mm
Size / Dimension [y]	2.28 in	2 - 2.28 in
Size / Dimension [z]	13.8 mm	13.8 - 31.8 mm
Size / Dimension [z]	0.54 in	0.54 - 1.25 in
Standard Number	50155	50155
Supplier Device Package	Half Brick	Half Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	40 V	40 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 54 V

DC DC CONVERTER 5V 200W

Part	Efficiency	Current - Output (Max) [Max]	Features	Number of Outputs	Voltage - Output 1	Package / Case	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Voltage - Input (Min) [Min]	Supplier Device Package	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation
aimtec AM250HB-11005SA30JZ	88 %	40 A	Adjustable Output, Remote On/Off, Remote Sense	1	5 V	Half Brick	Isolated Module	Industrial, Railway	-40 °C	105 ░C	50155	40 V	Half Brick	160 V	200 W	Through Hole	2.4 in	13.8 mm	61 mm	57.9 mm	2.28 in	0.54 in	3000 V
aimtec AM250HB-11054SA30JZ-K-B	90 %		Adjustable Output, Heatsink, Remote On/Off, Remote Sense	1	54 V	Half Brick	Isolated Module	Industrial, Railway	-40 °C	105 ░C		40 V	Half Brick	160 V	250 W	Through Hole	2.44 in	31.8 mm	62 mm	58 mm	2 in	1.25 "	3000 V
aimtec AM250HB-11005SA30JZ-K-B	88 %	40 A	Adjustable Output, Heatsink, Remote On/Off, Remote Sense	1	5 V	Half Brick	Isolated Module	Industrial, Railway	-40 °C	105 ░C		40 V	Half Brick	160 V	200 W	Through Hole	2.44 in	31.8 mm	62 mm	58 mm	2 in	1.25 "	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 40A 40V - 160V Input
