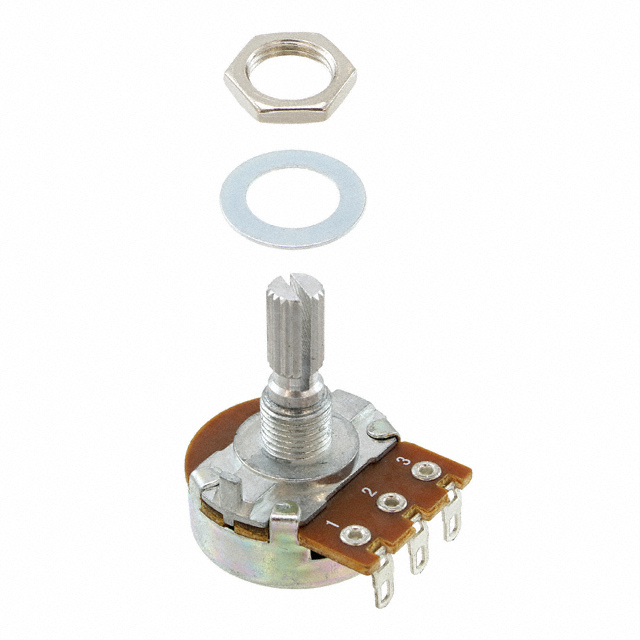

PDB242-E420K-254A2
ActiveBourns Inc.
POT 250K OHM 1/4W CARBON LOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDB242-E420K-254A2
ActiveBourns Inc.
POT 250K OHM 1/4W CARBON LOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDB242-E420K-254A2 |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [z] | 20 mm |
| Actuator Length [z] | 0.787 in |
| Actuator Type | Knurled and Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread [custom] | 0.75 mm |
| Bushing Thread [diameter] | M8 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 250k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [diameter] | 0.945 in |
| Size - Body [diameter] | 24 mm |
| Taper | Logarithmic |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
PDB242 Series
| Part | Number of Gangs | Adjustment Type | Taper | Power (Watts) | Power (Watts) | Actuator Type | Bushing Thread [custom] | Bushing Thread [diameter] | Built in Switch | Number of Turns | Actuator Length [z] | Actuator Length [z] | Rotation | Tolerance | Termination Style | Resistance (Ohms) | Size - Body [diameter] | Size - Body [diameter] | Resistive Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Built in Switch | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 1 | User Defined | Linear | 0.5 W | 0.5 W | Round | 0.75 mm | M8 | 1 | 30 mm | 1.181 in | 300 ░ | 20 % | Solder Lug | 250k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | |||||
Bourns Inc. | 1 | User Defined | Linear | 0.5 W | 0.5 W | Round | 0.75 mm | M8 | 1 | 20 mm | 0.787 in | 300 ░ | 20 % | Solder Lug | 10k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | |||||
Bourns Inc. | 1 | User Defined | Logarithmic | 250 mW | 0.25 W | Knurled and Slotted | 0.75 mm | M8 | 1 | 20 mm | 0.787 in | 300 ░ | 20 % | Solder Lug | 250k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | |||||
Bourns Inc. | 1 | User Defined | Linear | 0.5 W | 0.5 W | Flatted | 0.75 mm | M8 | 1 | 20 mm | 0.787 in | 300 ░ | 20 % | Solder Lug | 10k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | Detent | ||||
Bourns Inc. | 1 | User Defined | Logarithmic | 250 mW | 0.25 W | Round | 0.75 mm | M8 | 1 | 30 mm | 1.181 in | 300 ░ | 20 % | Solder Lug | 1M | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | |||||
Bourns Inc. | 1 | Side Adjustment | Logarithmic | 250 mW | 0.25 W | Round | 0.75 mm | M8 | 1 | 300 ░ | 20 % | PC Pins | 10k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | 0.984 in | 25 mm | |||||
Bourns Inc. | 1 | User Defined | Linear | 0.5 W | 0.5 W | Knurled and Slotted | 0.75 mm | M8 | 1 | 300 ░ | 20 % | Solder Lug | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | 0.984 in | 25 mm | 100 kOhms | |||||
Bourns Inc. | 1 | User Defined | Logarithmic | 250 mW | 0.25 W | Round | 0.75 mm | M8 | 1 | 30 mm | 1.181 in | 300 ░ | 20 % | Solder Lug | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | 500 kOhms | |||||
Bourns Inc. | 1 | User Defined | Logarithmic | 250 mW | 0.25 W | Round | 0.75 mm | M8 | 1 | 20 mm | 0.787 in | 300 ░ | 20 % | Solder Lug | 1M | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm | |||||
Bourns Inc. | 1 | User Defined | Logarithmic | 250 mW | 0.25 W | Round | 0.75 mm | M8 | 1 | 20 mm | 0.787 in | 300 ░ | 20 % | Solder Lug | 250k | 0.945 in | 24 mm | Carbon | 0.236 in | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.97 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.32 | |||
| 40 | $ 2.18 | |||
| 100 | $ 2.13 | |||
| 300 | $ 2.04 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.63 | |||
Description
General part information
PDB242 Series
250k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.25W, 1/4W Solder Lug
