CDC1104RVKR
Active1-TO-4 CONFIGURABLE LOW FREQUENCY CLOCK BUFFER FOR 3D DISPLAYS
Deep-Dive with AI
Search across all available documentation for this part.
CDC1104RVKR
Active1-TO-4 CONFIGURABLE LOW FREQUENCY CLOCK BUFFER FOR 3D DISPLAYS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CDC1104RVKR |
|---|---|
| Differential - Input:Output [custom] | False |
| Differential - Input:Output [custom] | False |
| Frequency - Max [Max] | 120 Hz |
| Input | TTL |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | TTL |
| Ratio - Input:Output [custom] | 4 |
| Ratio - Input:Output [custom] | 1 |

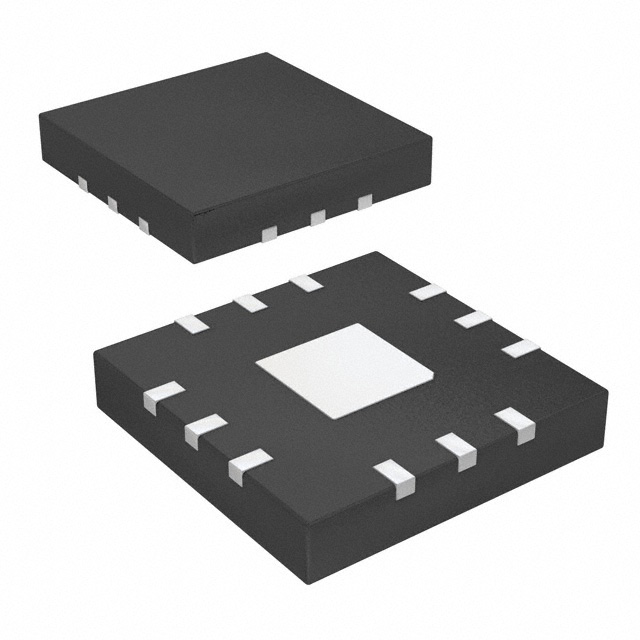

| Supplier Device Package | 12-WQFN (3x3) |
| Type | Buffer/Driver |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.56 | |
| 6000 | $ 0.53 | |||
| 15000 | $ 0.51 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.89 | |
| 100 | $ 0.73 | |||
| 250 | $ 0.53 | |||
| 1000 | $ 0.40 | |||
CDC1104 Series
1-to-4 configurable low frequency clock buffer for 3D displays
| Part | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Type | Input | Output | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Frequency - Max [Max] | Supplier Device Package | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDC1104RVKR | Buffer/Driver | TTL | TTL | Surface Mount | -40 °C | 85 °C | 3.8 V | 5.5 V | 4 | 1 | 120 Hz | 12-WQFN (3x3) | 1 |
Description
General part information
CDC1104 Series
The CDC1104 is a 1 to 4 configurable clock buffer. The device accepts an input reference clock and creates 4 buffered output clocks with an output frequency equal to one half the input clock frequency. Four control inputs, S1, S2, S3, S4 configurable phases of the clock outputs.
The CDC1104 is a 1 to 4 configurable clock buffer. The device accepts an input reference clock and creates 4 buffered output clocks with an output frequency equal to one half the input clock frequency. Four control inputs, S1, S2, S3, S4 configurable phases of the clock outputs.
