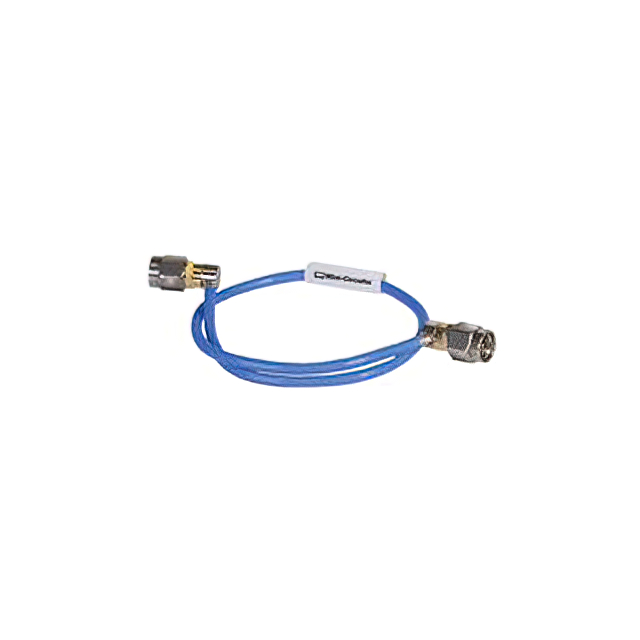

086-12SMR+

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HFLEX BL CA SMR/SMR 12" ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HFLEX BL CA SMR/SMR 12" ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY SMA PLUG TO PLUG 12"

Part	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector Mounting Type	Color	1st Contact Gender	2nd Connector Mounting Type	Style	Overall Impedance	Cable Type	Cable Type	Length	Length	2nd Connector	1st Connector	Frequency - Max [Max]	2nd Contact Gender	2nd Connector	Style [Min]	Style [Max]
MINI-CIRCUITS 086-12SM+	105 ░C	-55 °C	Free Hanging (In-Line)	Blue	Male	Free Hanging (In-Line)	SMA to SMA	50 Ohms	Hand Formable	0.086	12 "	304.8 mm	SMA Plug	SMA Plug	18 GHz	Male
MINI-CIRCUITS 086-12KM+	85 °C	-55 °C	Free Hanging (In-Line)	Blue	Male	Free Hanging (In-Line)		50 Ohms	Hand Formable	0.086	12 "	304.8 mm		2.92mm Plug	40 GHz	Male	2.92 mm	2.92 mm	2.92 mm
MINI-CIRCUITS 086-12SMR+	105 ░C	-55 °C	Free Hanging (In-Line)	Blue	Male	Free Hanging (In-Line)	SMA to SMA	50 Ohms	Hand Formable	0.086	12 "	304.8 mm	SMA Plug, Right Angle	Right Angle, SMA Plug	18 GHz	Male
MINI-CIRCUITS 086-12SMRSM+	105 ░C	-55 °C	Free Hanging (In-Line)	Blue	Male	Free Hanging (In-Line)	SMA to SMA	50 Ohms	Hand Formable	0.086	12 "	304.8 mm	SMA Plug	Right Angle, SMA Plug	18 GHz	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 12.00" (304.80mm)
