Description
General part information

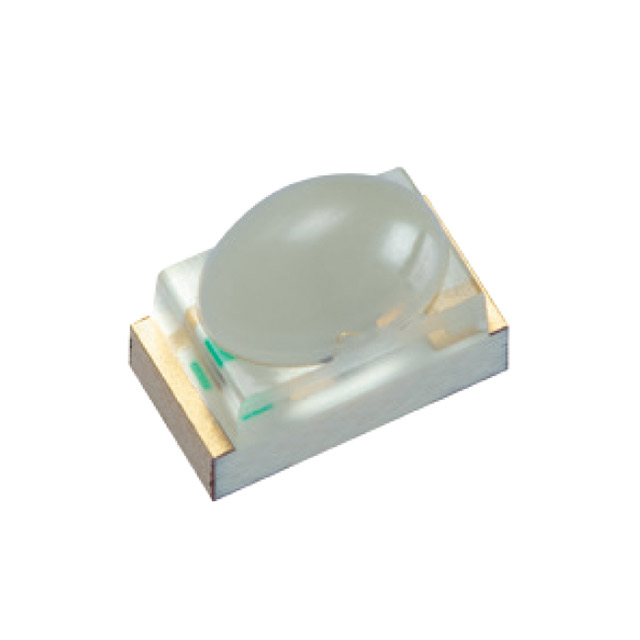

XZMDK79 Series
Red 630nm LED Indication - Discrete 1.95V 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDK79W |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 3.2 mm |
| Lens Color | Colorless |
| Lens Length | 3 mm |
| Lens Style | Domed Top, Rectangle |
| Lens Transparency | Clear |
| Lens Width | 2 mm |
| Millicandela Rating | 347 mcd |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Package Name | 2-SMD |
| Size / Dimension Length | 3.8 mm |
| Size / Dimension Width | 2 mm |
| Viewing Angle (Horizontal) | 60 ° |
| Viewing Angle (Vertical) | 35 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 645 nm |
