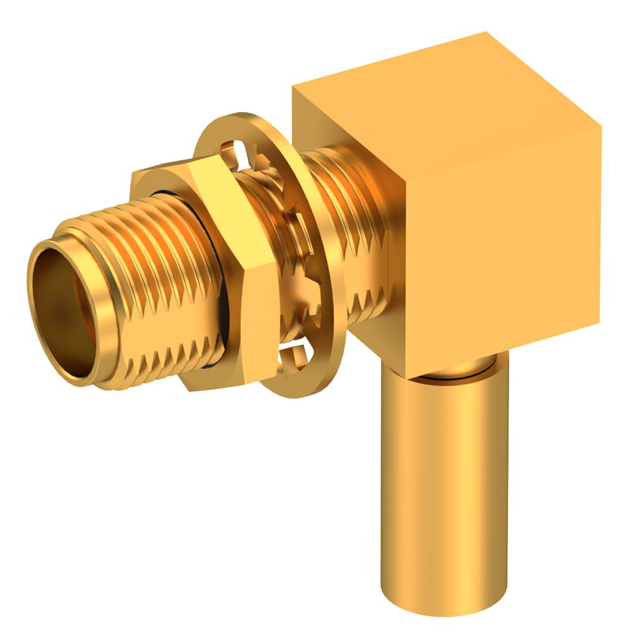

Specification	9613-1523-019

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-316DS, RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Lockwasher, Nut, Connector
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

9613-1523 Series

Part	Housing Color	Number of Ports	Contact Termination	Mounting Type	Cable Group	Mounting Feature	Center Contact Material	Shield Termination	Impedance	Frequency - Max	Connector Type	Fastening Type	Connector Style	Dielectric Material	Body Material	Mating Cycles	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Voltage Rating	Includes Total Count	Includes
Radiall USA, Inc. 9613-1523-003	Gold	1	Crimp	Panel Mount Right Angle	188 316 RG-174	Bulkhead Front Side Nut	Beryllium Copper	Crimp	50 Ohm	12.4 GHz	Female Socket Jack	Threaded	SMA	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Gold	250 V
Radiall USA, Inc. 9613-1523-019	Gold	1	Crimp	Panel Mount Right Angle	RD-316 RG-316DS	Bulkhead Front Side Nut	Beryllium Copper	Crimp	50 Ohm	18 GHz	Female Socket Jack	Threaded	SMA	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Gold		3 pcs	Connector Lockwasher Nut
Radiall USA, Inc. 9613-1523-002	Gold	1	Crimp	Panel Mount Right Angle	196 RG-178	Bulkhead Front Side Nut	Beryllium Copper	Crimp	50 Ohm	18 GHz	Female Socket Jack	Threaded	SMA	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Gold		3 pcs	Connector Lockwasher Nut
