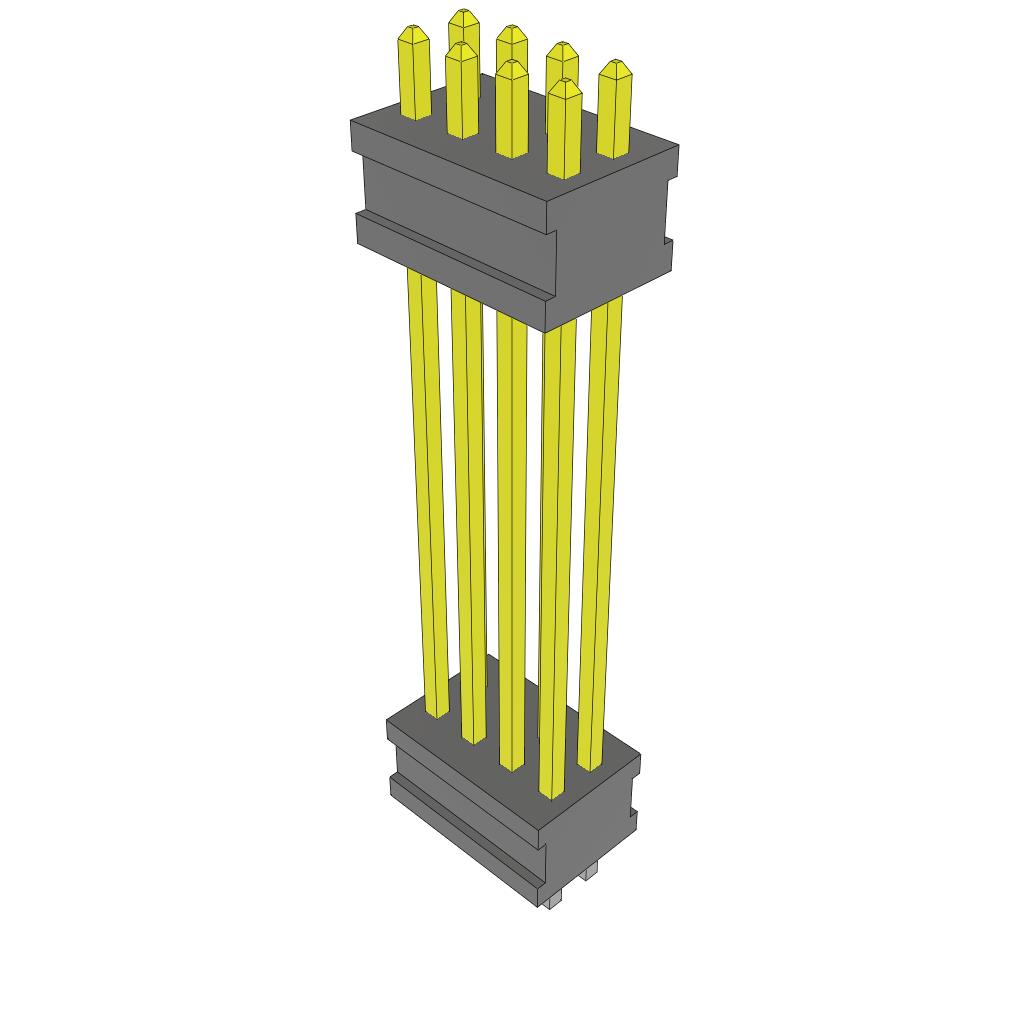

FW-04-01-L-D-690-065 - FW-04-01-L-D-690-065

FW-04-01-L-D-690-065

Active
Samtec Inc.

CONN HDR 8POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFW Series Other Related Documents 03FW Series Other Related Documents 01+2
FW-04-01-L-D-690-065 - FW-04-01-L-D-690-065

FW-04-01-L-D-690-065

Active
Samtec Inc.

CONN HDR 8POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsFW Series Other Related Documents 03FW Series Other Related Documents 01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationFW-04-01-L-D-690-065
ColorBlack
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)0.25 Ám
Contact Finish Thickness - Post (Mating)10 Áin
Length - Overall Pin0.8 in
Length - Overall Pin20.32 mm
Length - Post (Mating) [x]1.651 mm
Length - Post (Mating) [x]0.065 in
Length - Stack Height [x]17.526 mm
Length - Stack Height [x]0.69 in
Length - Tail1.143 mm
Length - Tail0.045 "
Mounting TypeThrough Hole
Number of Positions8
Number of Rows2
Pitch [x]0.05 in
Pitch [x]1.27 mm
Row Spacing1.27 mm
Row Spacing0.05 in
TerminationSolder

FW-04-01 Series

PartPitch [x]Pitch [x]Contact Finish - Post (Mating)Contact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)ColorRow SpacingRow SpacingNumber of RowsLength - Stack Height [x]Length - Stack Height [x]Length - Post (Mating) [x]Length - Post (Mating) [x]Length - TailLength - TailNumber of PositionsMounting TypeLength - Overall Pin [x]Length - Overall PinTerminationLength - Overall PinLength - Stack Height [z]Length - Stack Height [z]Length - Overall Pin [x]
Samtec Inc.
FW-04-01-F-D-300-180
0.05 in
1.27 mm
Gold
3 Áin
0.076 Ám
Black
1.27 mm
0.05 in
2
0.3 in
7.62 mm
4.572 mm
0.18 in
1.143 mm
0.045 "
8
Through Hole
0.525 in
13.335 mm
Solder
Samtec Inc.
FW-04-01-L-D-200-075
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
1.905 mm
0.075 in
1.143 mm
0.045 "
8
Through Hole
8.128 mm
Solder
0.32 in
Samtec Inc.
FW-04-01-F-D-450-120
0.05 in
1.27 mm
Gold
3 Áin
0.076 Ám
Black
1.27 mm
0.05 in
2
3.048 mm
0.12 in
1.143 mm
0.045 "
8
Through Hole
0.615 "
Solder
0.45 in
11.43 mm
15.621 mm
Samtec Inc.
FW-04-01-L-D-230-160
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
4.064 mm
0.16 in
1.143 mm
0.045 "
8
Through Hole
0.435 in
Solder
11.049 mm
Samtec Inc.
FW-04-01-L-D-690-065
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
0.69 in
17.526 mm
1.651 mm
0.065 in
1.143 mm
0.045 "
8
Through Hole
20.32 mm
Solder
0.8 in
Samtec Inc.
FW-04-01-G-D-250-065
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
0.25 in
6.35 mm
1.651 mm
0.065 in
1.143 mm
0.045 "
8
Through Hole
0.36 in
Solder
9.144 mm
Samtec Inc.
FW-04-01-L-D-226-065
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
1.651 mm
0.065 in
1.143 mm
0.045 "
8
Through Hole
0.336 in
Solder
0.226 in
5.74 mm
8.534 mm
Samtec Inc.
FW-04-01-F-D-071-084
0.05 in
1.27 mm
Gold
3 Áin
0.076 Ám
Black
1.27 mm
0.05 in
2
0.071 in
1.803 mm
2.134 mm
0.084 in
1.143 mm
0.045 "
8
Through Hole
0.2 in
Solder
5.08 mm
Samtec Inc.
FW-04-01-F-D-200-065
0.05 in
1.27 mm
Gold
3 Áin
0.076 Ám
Black
1.27 mm
0.05 in
2
1.651 mm
0.065 in
1.143 mm
0.045 "
8
Through Hole
0.31 in
Solder
7.874 mm
Samtec Inc.
FW-04-01-L-D-300-100
0.05 in
1.27 mm
Gold
10 Áin
0.25 Ám
Black
1.27 mm
0.05 in
2
0.3 in
7.62 mm
2.54 mm
0.1 in
1.143 mm
0.045 "
8
Through Hole
0.445 in
Solder
11.303 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.06

Description

General part information

FW-04-01 Series

8 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
