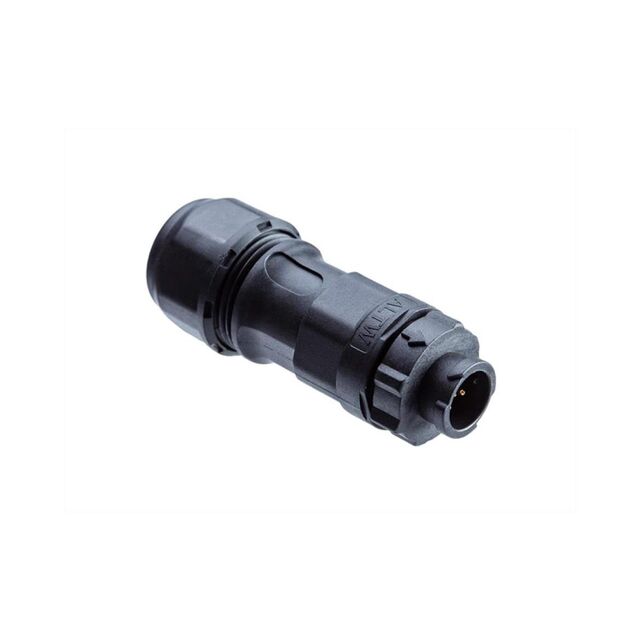

AU-06BMMB-QL8AP0
ActiveAmphenol LTW
X-LOK, MINI SIZE, 2A, 06 PINS, F
Deep-Dive with AI
Search across all available documentation for this part.
AU-06BMMB-QL8AP0
ActiveAmphenol LTW
X-LOK, MINI SIZE, 2A, 06 PINS, F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-06BMMB-QL8AP0 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 13.79 | |
Description
General part information
AU-06BMMB Series
6 Position Circular Connector Plug, Male Pins Screw
