S-J-5215X-5-25-0000

Active

Yokowo

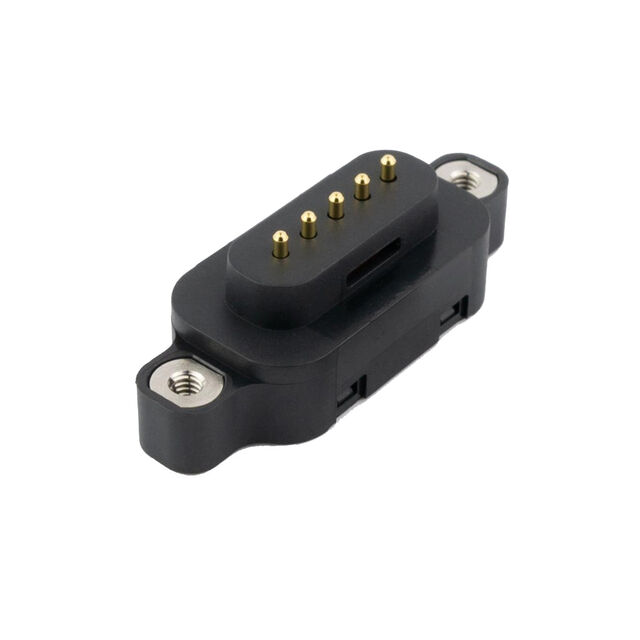

CONN SPRING PISTON 5POS PCB WP

Search across all available documentation for this part.

Active

Yokowo

CONN SPRING PISTON 5POS PCB WP

Technical Specifications

Parameters and characteristics for this part

Specification	S-J-5215X-5-25-0000

Current Rating (Amps)	2 A
Mating Cycles	20000
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Recommended Working Height [z]	0.224 in
Recommended Working Height [z]	5.7 mm

CONN SPRING PISTON 5POS PCB WP

Part	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Recommended Working Height [z]	Recommended Working Height [z]	Current Rating (Amps)
Yokowo S-J-5215X-5-25-0000	20000	85 °C	-40 °C	Surface Mount	0.224 in	5.7 mm	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Spring Surface Mount
