S11M0C-P06MFG0-3920
ActiveODU

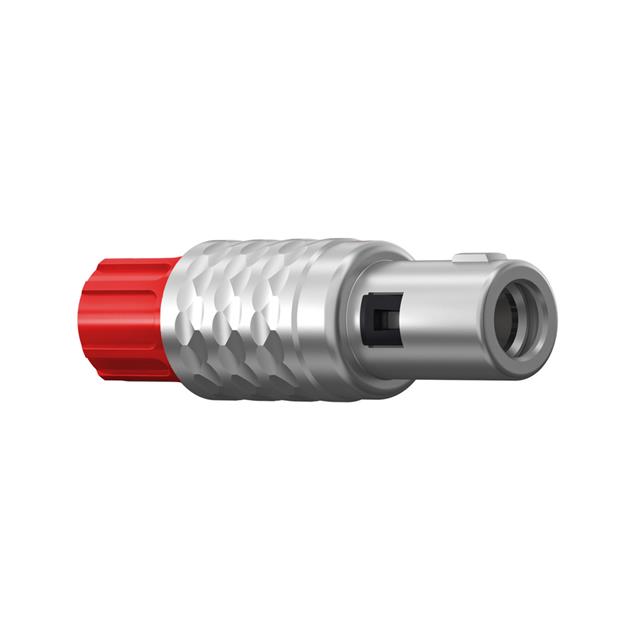

ODU MEDI-SNAP METAL, STRAIGHT PL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S11M0C-P06MFG0-3920
ActiveODU
ODU MEDI-SNAP METAL, STRAIGHT PL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S11M0C-P06MFG0-3920 |
|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement |
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [Max] [diameter] | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in |
| Color | Red, Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Voltage Rating | 33 V |
S11M0C-P Series
| Part | Shell Size - Insert | Color | Shielding | Current Rating (Amps) | Applications | Insert Material | Mounting Type | Ingress Protection | Shell Material | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish - Mating | Connector Type | Fastening Type | Primary Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Shell Finish | Features | Voltage Rating | Number of Positions | Orientation | Contact Material | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Silver | Unshielded | 4 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Chrome | Backshell | 25 V | 12 | 0 | Brass | |||||||
1 | Red Silver | Unshielded | 4 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 25 V | 12 | 0 | Brass | 0.209 in 0.256 in | 5.3 mm 6.5 mm | |||||||||
1 | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 35 V | 0 | Brass | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||||
1 | Green Silver | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 33 V | 7 | 0 | Brass | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||
1 | Red Silver | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 33 V | 7 | 0 | Brass | 0.209 in 0.256 in | 5.3 mm 6.5 mm | |||||||||
1 | Green Silver | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 33 V | 6 | 0 | Brass | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||
1 | Red Silver | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 33 V | 6 | 0 | Brass | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||
1 | Silver | Unshielded | 4 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Chrome | Backshell | 25 V | 10 | 0 | Brass | |||||||
1 | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | Chrome | Backshell | 33 V | 6 | 0 | Brass | 0.209 in 0.256 in | 5.3 mm 6.5 mm | ||||||||||
1 | Silver White | Unshielded | 7.5 A | Industrial Measurement Medical Testing Equipment | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | IP50 | Brass | Brass Chrome | -50 °C | 120 °C | UL94 V-0 | Gold | Male Pins Plug | Detent Lock Push-Pull | Metal | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Chrome | Backshell | 33 V | 6 | 0 | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.90 | |
Description
General part information
S11M0C-P Series
6 Position Circular Connector Plug, Male Pins Solder Cup
