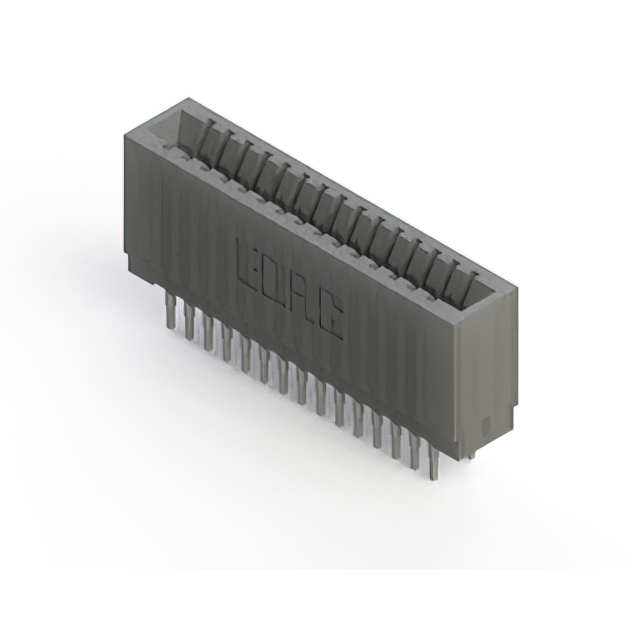

745-030-522-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 30POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745-030-522-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 30POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-030-522-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-030 Series

Part	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Contact Material	Gender	Contact Type	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Material - Insulation	Card Type	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Color
EDAC Inc. 745-030-545-201	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-560-201	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever Make Before Break	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-522-201	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-522-206	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-541-206	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit Wire Wrap	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-540-206	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit Wire Wrap	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-540-106	Single	1	30	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Polyester Thermoplastic	Non Specified - Single Edge	30	Press-Fit Wire Wrap	0.76 Ám	30 Áin	Black
EDAC Inc. 745-030-540-201	Dual	2	15	2.54 mm	0.1 in	Copper Alloy	Female	Cantilever	Through Hole	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	Non Specified - Dual Edge	30	Press-Fit Wire Wrap	0.76 Ám	30 Áin	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 6.09

Description

General part information

745-030 Series

30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
