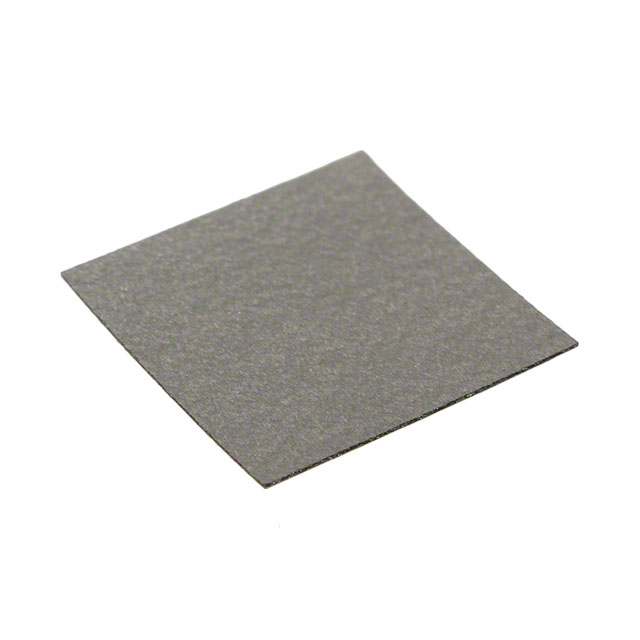

AB5010HFSQ-1(50)

Active

3M (TC)

RF EMI ABSORBING SHEET 1" X 1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AB5010HFSQ-1(50)

Active

3M (TC)

RF EMI ABSORBING SHEET 1" X 1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AB5010HFSQ-1(50)

Adhesive	Acrylic, Pressure Sensitive Adhesive (PSA), Non-Conductive, Double Sided
Length [x]	1 in
Length [x]	25.4 mm
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	71 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall [z]	0.13 mm
Thickness - Overall [z]	0.005 in
Type	Absorbing Sheet
Width	25.4 mm
Width [x]	1 in

AB5010 Series

Part	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Adhesive	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Type	Thickness - Overall [z]	Thickness - Overall [z]	Material	Shape	Width	Width [x]	Length	Length	Thickness - Overall [custom]	Thickness - Overall [custom]	Width
3M (TC) AB5010HFSQ-1(50)	1 in	25.4 mm	-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet	0.13 mm	0.005 in	Metal Flakes Polymer Resin	Square	25.4 mm	1 in
3M (TC) 3M AB5010 1" X 1.25"-100			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	25.4 mm	1 in	31.75 mm	1.25 in	0.004 "	0.1 mm
3M (TC) 3M AB5010HF 1" X 4"-50/PK			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet	0.13 mm	0.005 in	Metal Flakes Polymer Resin	Rectangular	25.4 mm	1 in	101.6 mm	4 in
3M (TC) 3M AB5010 1.5" X 9.25"-100			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	38.1 mm	1.5 in	234.95 mm	9.25 inches	0.004 "	0.1 mm
3M (TC) 3M AB5010 1.5" X 3"-100			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	38.1 mm	1.5 in	76.2 mm	3 in	0.004 "	0.1 mm
3M (TC) 3M AB5010 4.13" X 7.25"-25	7.25 in	184.15 mm	-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive					Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	104.9 mm				0.004 "	0.1 mm	4.13 in
3M (TC) AB5010R
3M (TC) 3M AB5010 4.13" X 8.625"-25			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive					Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	104.9 mm				0.004 "	0.1 mm	4.13 in
3M (TC) 3M AB5010 0.5" X 6"-250			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive Double Sided					Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular			152.4 mm	6 in	0.004 "	0.1 mm
3M (TC) 3M AB5010 1" X 5"-100			-25 °C	85 °C	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Date of Shipment	71 °F	21 °C	12 Months	Absorbing Sheet			Metal Flakes Polymer Resin	Rectangular	25.4 mm	1 in	127 mm	5 in	0.004 "	0.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.11
		50	$ 56.46
		100	$ 52.32

Description

General part information

AB5010 Series

RF EMI Absorbing Sheet AB5000HF Polymer Resin, Metal Flakes Acrylic, Pressure Sensitive Adhesive (PSA), Non-Conductive, Double Sided 1.000" (25.40mm) X 1.000" (25.40mm) X 0.005" (0.13mm)
