10056845-140LF - 10056845-140LF

10056845-140LF

Active
Amphenol ICC (FCI)

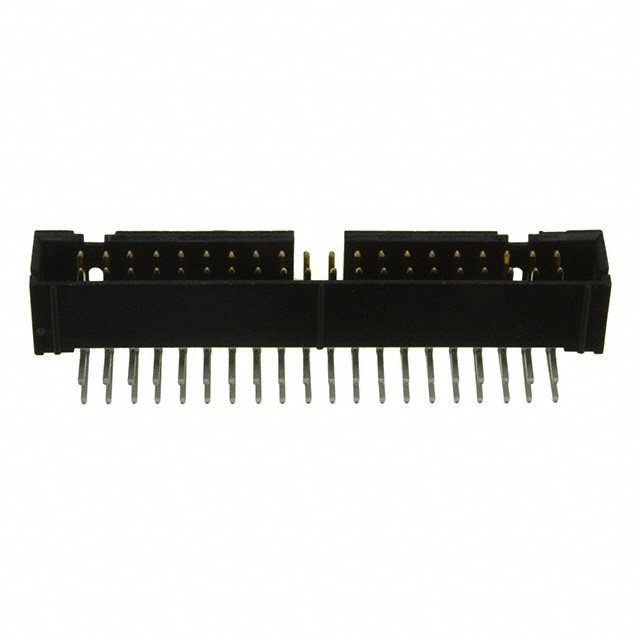

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetquickie productpresentation Other Related Document+1
10056845-140LF - 10056845-140LF

10056845-140LF

Active
Amphenol ICC (FCI)

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheetquickie productpresentation Other Related Document+1

Technical Specifications

Parameters and characteristics for this part

Specification10056845-140LF
Connector TypeHeader
Contact Finish - MatingGold, GXT™
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Finish Thickness - Post2 çm
Contact Finish Thickness - Post78.7 çin
Contact Length - Mating6 mm
Contact Length - Mating0.236 in
Contact Length - Post0.079 "
Contact Length - Post2 mm
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeDetent Lock
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height0.362 in
Insulation Height9.2 mm
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions40
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

10056845 Series

PartContact TypeNumber of PositionsPitch - MatingPitch - MatingConnector TypeContact Finish Thickness - PostContact Finish Thickness - PostContact Length - PostContact Length - PostInsulation ColorTerminationContact ShapeFeaturesContact MaterialNumber of RowsStyleFastening TypeInsulation HeightInsulation HeightRow Spacing - Mating [x]Row Spacing - Mating [x]Contact Finish - PostShroudingMaterial Flammability RatingContact Finish - MatingContact Length - MatingContact Length - MatingInsulation MaterialNumber of Positions LoadedMounting TypeContact Finish Thickness - MatingContact Finish Thickness - Mating
Amphenol ICC (FCI)
10056845-110KLF
Male Pin
10
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám
Amphenol ICC (FCI)
10056845-140LF
Male Pin
40
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám
Amphenol ICC (FCI)
10056845-134LF
Male Pin
34
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám
Amphenol ICC (FCI)
10056845-108LF
Male Pin
8
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám
Amphenol ICC (FCI)
10056845-130LF
Male Pin
30
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám
Amphenol ICC (FCI)
10056845-S34KLF
Male Pin
34
0.1 in
2.54 mm
Header
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Shrouded - 4 Wall
UL94 V-0
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
Amphenol ICC (FCI)
10056845-134KLF
Male Pin
34
0.1 in
2.54 mm
Header
2 çm
78.7 çin
0.079 "
2 mm
Black
Solder
Square
Keying Slot
Copper Alloy
2
Board to Cable/Wire
Detent Lock
0.362 in
9.2 mm
2.54 mm
0.1 in
Tin
Shrouded - 4 Wall
UL94 V-0
Gold
GXT™
6 mm
0.236 in
Thermoplastic
All
Through Hole
Right Angle
30 Áin
0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1500$ 2.77

Description

General part information

10056845 Series

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
