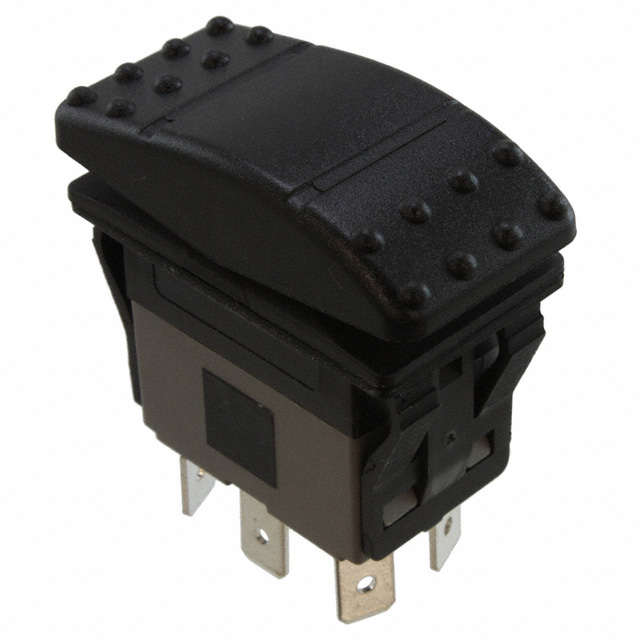

Specification	GRB234A2NABA1

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating	25 A
Electrical Life (Cycles)	30000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Length	37 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21.1 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off-On
Termination Style	Quick Connect
Voltage Rating - DC	12 V

GRB Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Actuator Marking	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Current Rating	Color - Actuator/Cap	Operating Temperature (Max)	Operating Temperature (Min)	Quick Connect Size (0.250")	Termination Style	Switch Function	Circuit	Actuator Type	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - DC	Panel Cutout Diameter	Voltage Rating - AC
CW Industries GRB234A2NABA1	100000 Cycles	30000 Cycles	No Marking	37 mm	Rectangular	21.1 mm	25 A	Black	85 °C	-25 °C	0.25 in	Quick Connect	On-Off-On	DPDT	Convex (Reverse V)	Panel Mount Snap-In	Dust Tight Waterproof	IP67	12 V
CW Industries GRB136B05BB2	100000 Cycles		O		Circular		10 A	Black				Solder Lug	On-On	DPDT	Concave (Curved)	Panel Mount Threaded Body with Nut				18.2 mm	125 V
