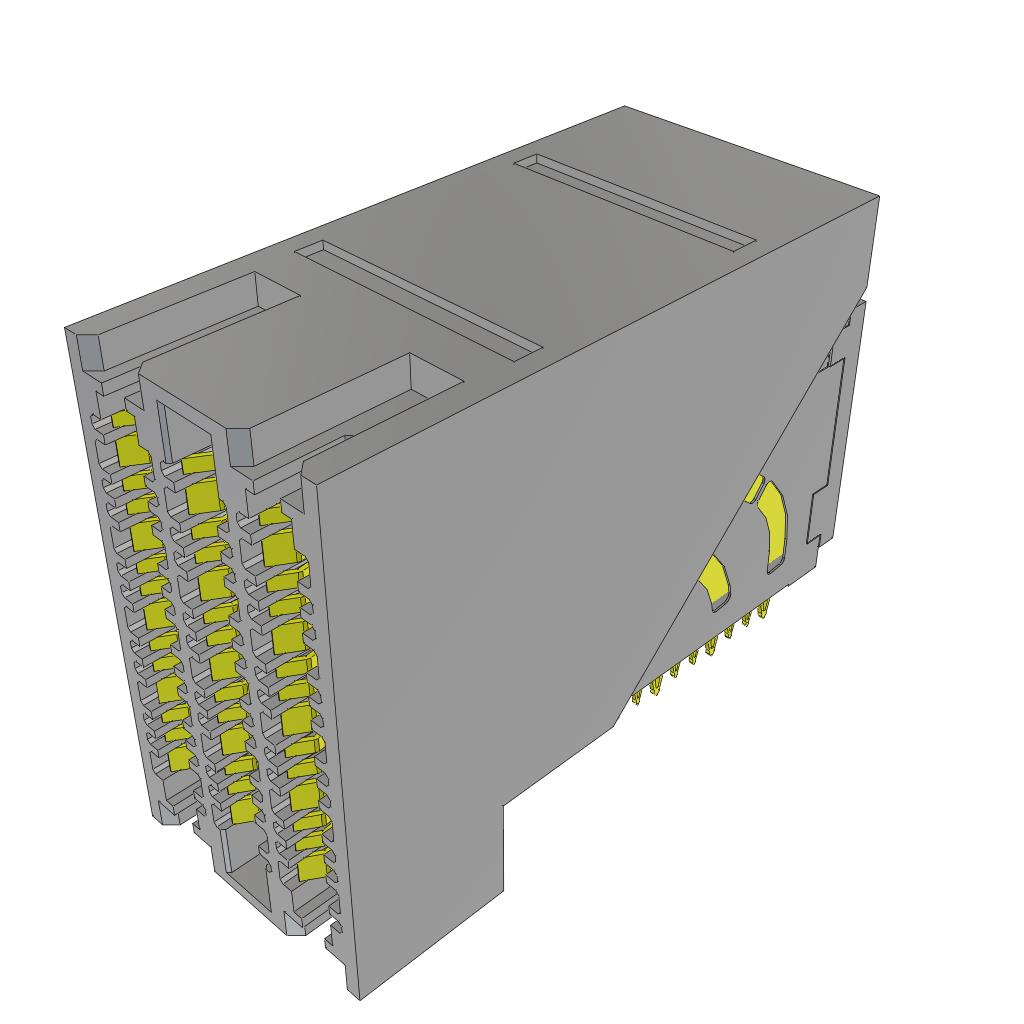

EBTF-4-06-2.0-S-RA-1

Active

Samtec Inc.

EXAMAX 2.00 MM HIGH-SPEED BACKPL

Search across all available documentation for this part.

Active

Samtec Inc.

EXAMAX 2.00 MM HIGH-SPEED BACKPL

Technical Specifications

Parameters and characteristics for this part

Specification	EBTF-4-06-2.0-S-RA-1

Color	Black
Connector Style	ExaMax®
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	4.2 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Columns	6
Number of Positions	48
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Contact Finish	Number of Columns	Pitch [x]	Pitch [x]	Connector Style	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Current Rating (Amps)	Termination	Connector Usage	Mounting Type	Number of Positions
Samtec Inc. EBTF-4-06-2.0-S-RA-1	Gold	6	0.079 in	2 mm	ExaMax®	UL94 V-0	105 ░C	-55 °C	Black	Receptacle Female Blade Sockets	0.76 Ám	30 Áin	All	4.2 A	Press-Fit	Backplane	Through Hole Right Angle	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

48 Connector Receptacle, Female Blade Sockets Through Hole, Right Angle Black ExaMax®
