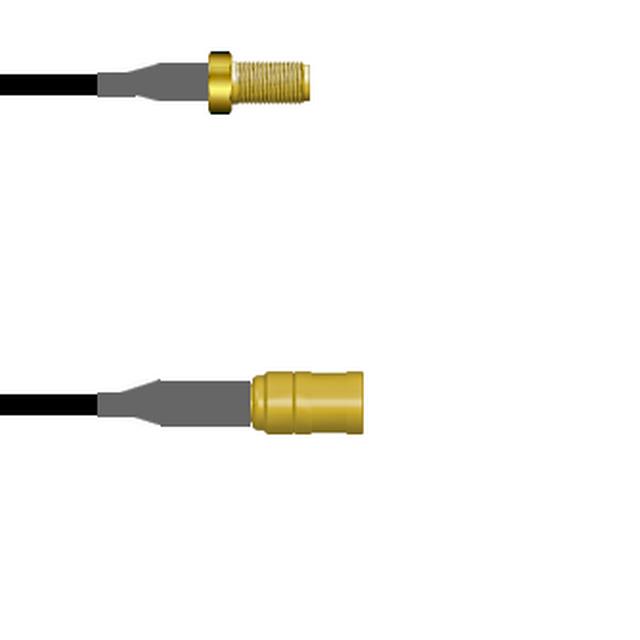

Q-2V03W0003002M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-PLUG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2V03W0003002M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-PLUG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V03W0003002M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-2V03W0 Series

Part	Frequency - Max [Max]	Cable Impedance	Cable Type	Length [x]	Length [x]	1st Connector Mounting Type	1st Contact Gender	Features	Overall Impedance	2nd Contact Gender	Style	Connector Impedance	2nd Connector Mounting Type	2nd Connector	Color	1st Connector	Length	Length	Length
Amphenol Custom Cable Q-2V03W0005.25M	3 GHz	50 Ohms	RG-316	9.843 "	250 mm	Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Copper	SMA Jack
Amphenol Custom Cable Q-2V03W0003001M	1 GHz	50 Ohms	RG-174			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Black	SMA Jack	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-2V03W0003009I	1 GHz	50 Ohms	RG-174			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Black	SMA Jack	228.6 mm		9 "
Amphenol Custom Cable Q-2V03W0005084I	3 GHz	50 Ohms	RG-316			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Copper	SMA Jack	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-2V03W00050.5M	3 GHz	50 Ohms	RG-316			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Copper	SMA Jack	50 cm		19.69 "
Amphenol Custom Cable Q-2V03W0003024I	1 GHz	50 Ohms	RG-174			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Black	SMA Jack	609.6 mm		24 "
Amphenol Custom Cable Q-2V03W0005024I	3 GHz	50 Ohms	RG-316			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Copper	SMA Jack	609.6 mm		24 "
Amphenol Custom Cable Q-2V03W0003003M	1 GHz	50 Ohms	RG-174			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Black	SMA Jack	3 m	9.8 '	118.1 in
Amphenol Custom Cable Q-2V03W0003002M	1 GHz	50 Ohms	RG-174			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Black	SMA Jack	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-2V03W0005072I	3 GHz	50 Ohms	RG-316			Free Hanging (In-Line)	Female	Shielded	50 Ohms	Female	SMA to SMB	50 Ohms	Free Hanging (In-Line)	SMB Plug	Copper	SMA Jack	1.8 m	6 ft	72 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.13
		25	$ 70.89
		50	$ 65.66
		100	$ 61.18
		250	$ 57.44

Description

General part information

Q-2V03W0 Series

Cable Assembly Coaxial SMA to SMB RG-174 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
