IRDM982-025MBTR

Obsolete

Infineon Technologies

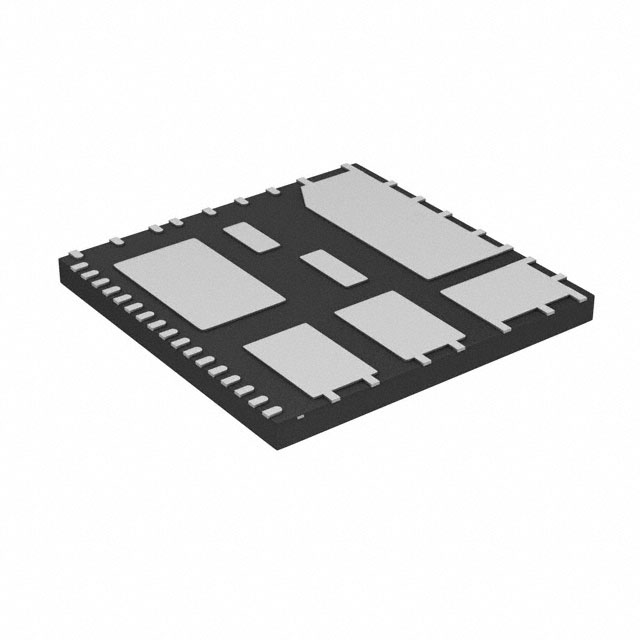

IC MTR DRIVER 13.5V-16.5V 40PQFN

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC MTR DRIVER 13.5V-16.5V 40PQFN

Technical Specifications

Parameters and characteristics for this part

Specification	IRDM982-025MBTR

Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Synchronous, AC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	40-PowerVQFN
Supplier Device Package	40-PQFN (12x12)
Technology	Power MOSFET
Voltage - Load [Max]	450 V
Voltage - Load [Min]	100 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Technology	Output Configuration	Interface	Motor Type - AC, DC	Mounting Type
Infineon Technologies IRDM982-025MB	13.5 V	16.5 V	Driver - Fully Integrated Control and Power Stage	100 V	450 V	40-PowerVQFN	150 °C	-40 °C	40-PQFN (12x12)	Power MOSFET	Half Bridge (3)	Parallel	AC Synchronous	Surface Mount
Infineon Technologies IRDM982-025MBTR	13.5 V	16.5 V	Driver - Fully Integrated Control and Power Stage	100 V	450 V	40-PowerVQFN	150 °C	-40 °C	40-PQFN (12x12)	Power MOSFET	Half Bridge (3)	Parallel	AC Synchronous	Surface Mount
Infineon Technologies IRDM982-035MB	13.5 V	16.5 V	Driver - Fully Integrated Control and Power Stage	100 V	450 V	40-PowerVQFN	150 °C	-40 °C	40-PQFN (12x12)	Power MOSFET	Half Bridge (3)	Parallel	AC Synchronous	Surface Mount
Infineon Technologies IRDM982-035MBTR	13.5 V	16.5 V	Driver - Fully Integrated Control and Power Stage	100 V	450 V	40-PowerVQFN	150 °C	-40 °C	40-PQFN (12x12)	Power MOSFET	Half Bridge (3)	Parallel	AC Synchronous	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET Parallel 40-PQFN (12x12)
