89HPES5T5ZBBC

Obsolete

Renesas Electronics Corporation

5-LANE, 5-PORT PCIE I/O EXPANSION SWITCH

Find alt

Alpha

89HPES5T5ZBBC

Obsolete

Renesas Electronics Corporation

5-LANE, 5-PORT PCIE I/O EXPANSION SWITCH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

89HPES5T5 Series

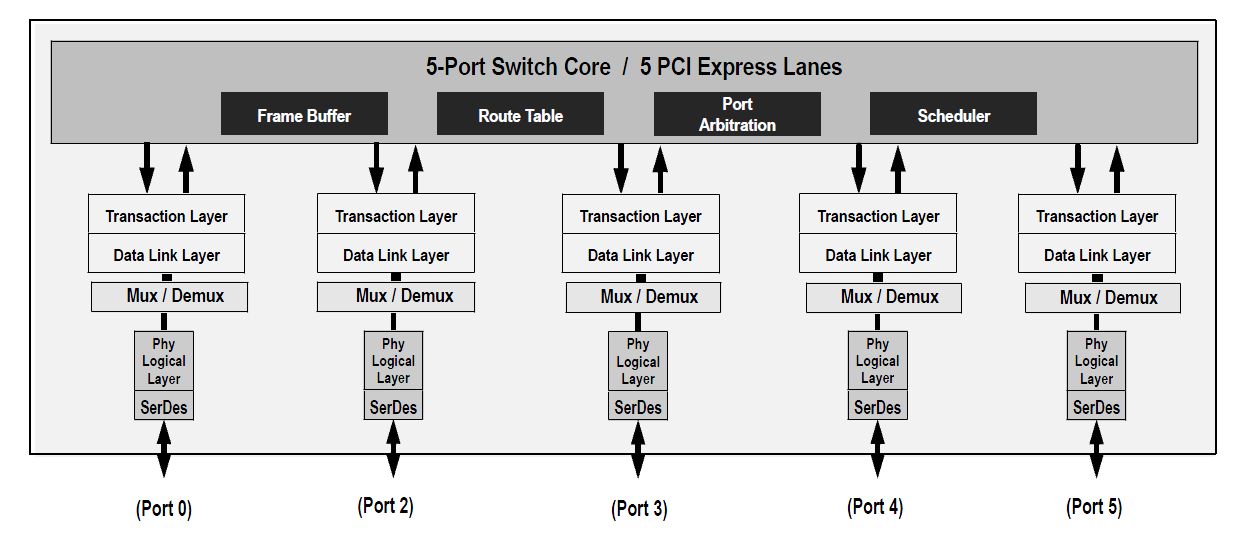

Provides high-performance I/O expansion and switching functions between a PCIe upstream port and four downstream ports or peer-to-peer switching between downstream ports.

Technical Specifications

Parameters and characteristics for this part

Specification	89HPES5T5ZBBC

Applications	Switch Interfacing
Interface	PCI Express
Mounting Type	Surface Mount
Package / Case	196-BGA
Package Length	15 mm
Package Name	196-CABGA
Package Width	15 mm
Voltage - Supply	3.3 V

89HPES5T5 Series

Part	Mounting Type	Package Width	Package Name	Package Length	Package / Case	Applications	Interface	Voltage - Supply
Renesas Electronics Corporation 89HPES5T5ZBBC8	Surface Mount	15 mm	196-CABGA	15 mm	196-BGA	Switch Interfacing	PCI Express	3.3 V
Renesas Electronics Corporation 89HPES5T5ZBBCGI	Surface Mount	15 mm	196-CABGA	15 mm	196-BGA	Switch Interfacing	PCI Express	3.3 V
Renesas Electronics Corporation 89HPES5T5ZBBCG	Surface Mount	15 mm	196-CABGA	15 mm	196-BGA	Switch Interfacing	PCI Express	3.3 V
Renesas Electronics Corporation 89HPES5T5ZBBCGI8	Surface Mount	15 mm	196-CABGA	15 mm	196-BGA	Switch Interfacing	PCI Express	3.3 V
Renesas Electronics Corporation 89HPES5T5ZBBC	Surface Mount	15 mm	196-CABGA	15 mm	196-BGA	Switch Interfacing	PCI Express	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

89HPES5T5ZBBC | Datasheet

89PES5T5 Data Sheet
