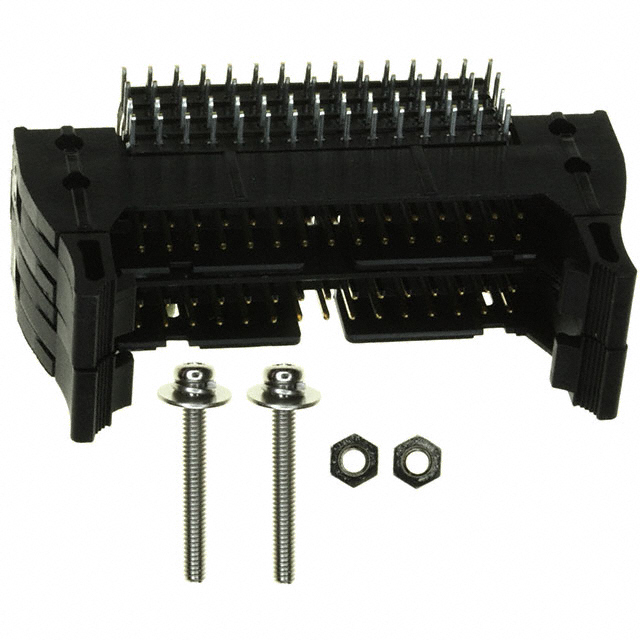

XG4A-3039-A

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG4A-3039-A

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG4A-3039-A

Connector Type	Stackable (2), Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Mounting Flange, Keying Slot, Mounting Hardware
Insulation Color	Black
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

XG4A Series

Part	Contact Material	Style	Mounting Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Post	Insulation Material	Number of Rows	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating [x]	Insulation Color	Number of Positions	Current Rating (Amps)	Connector Type	Shrouding	Material Flammability Rating	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Fastening Type	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Features	Overall Contact Length	Overall Contact Length	Mated Stacking Heights
Omron Electronics Inc-EMC Div XG4A-6035	Brass Nickel	Board to Cable/Wire	Through Hole Right Angle	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2	0.335 "	8.51 mm	6.1 mm	0.24 in	Black	60	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Short	Gold
Omron Electronics Inc-EMC Div XG4A-6479-A	Brass Nickel	Board to Cable/Wire	Through Hole Right Angle	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	64	3 A	Header Stackable (2)	Shrouded - 4 Wall	UL94 V-0	Square			All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "	Keying Slot Mounting Flange Mounting Hardware
Omron Electronics Inc-EMC Div XG4A-1079-A	Brass Nickel	Board to Cable/Wire	Through Hole Right Angle	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black		3 A	Header Stackable (2)	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "	Keying Slot Mounting Flange Mounting Hardware
Omron Electronics Inc-EMC Div XG4A-6432	Brass Nickel	Board to Cable/Wire	Through Hole	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	64	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Short	Gold	17 mm	0.669 "		16.7 mm	0.657 in	23.5 mm
Omron Electronics Inc-EMC Div XG4A-6439-A	Brass Nickel	Board to Cable/Wire	Through Hole Right Angle	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	64	3 A	Header Stackable (2)	Shrouded - 4 Wall	UL94 V-0	Square			All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "	Keying Slot Mounting Flange Mounting Hardware
Omron Electronics Inc-EMC Div XG4A-6472	Brass Nickel	Board to Cable/Wire	Through Hole	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	64	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Short	Gold	17 mm	0.669 "		16.7 mm	0.657 in	23.5 mm
Omron Electronics Inc-EMC Div XG4A-5031	Brass Nickel	Board to Cable/Wire	Through Hole	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	50	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "		16.7 mm	0.657 in	23.5 mm
Omron Electronics Inc-EMC Div XG4A-2631	Brass Nickel	Board to Cable/Wire	Through Hole	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	26	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "		16.7 mm	0.657 in	23.5 mm
Omron Electronics Inc-EMC Div XG4A-1431	Brass Nickel	Board to Cable/Wire	Through Hole	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black	14	3 A	Header	Shrouded - 4 Wall	UL94 V-0	Square	3.2 mm	0.126 in	All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "		16.7 mm	0.657 in	23.5 mm
Omron Electronics Inc-EMC Div XG4A-3039-A	Brass Nickel	Board to Cable/Wire	Through Hole Right Angle	Male Pin	105 ░C	-55 °C	0.15 µm	5.9 µin	2 çm	78.7 çin	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2			6.1 mm	0.24 in	Black		3 A	Header Stackable (2)	Shrouded - 4 Wall	UL94 V-0	Square			All	0.1 in	2.54 mm	2.54 mm	0.1 in	300 VDC	Latch Lock/Eject Hooks Long	Gold	17 mm	0.669 "	Keying Slot Mounting Flange Mounting Hardware
