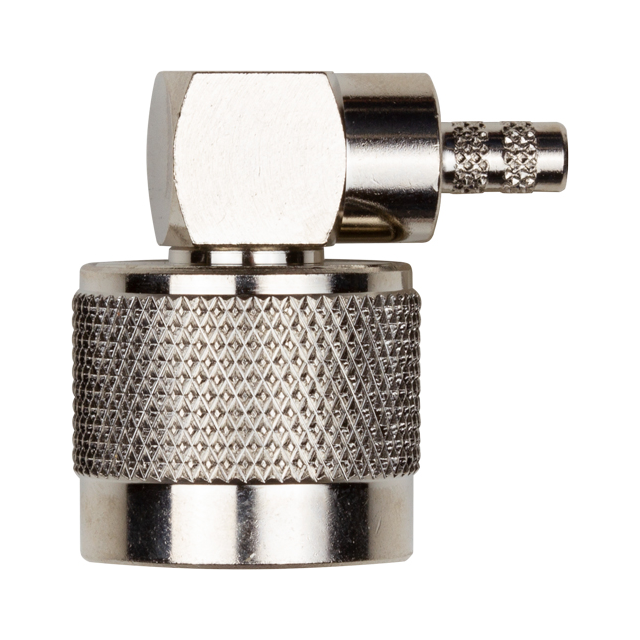

RFN-1009-C-03

Active

RF Industries

N MALE R/A CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

N MALE R/A CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1009-C-03

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Connector Type	Center Contact Plating	Connector Style	Body Finish	Dielectric Material	Body Material	Number of Ports	Center Contact Material	Housing Color	Impedance	Voltage Rating	Frequency - Max [Max]	Mounting Type
RF Industries RFN-1009-C-03	Crimp	-65 ░C	85 °C	Crimp	Male Pin Plug	Gold	N Type	Nickel	Polytetrafluoroethylene (PTFE)	Brass	1	Brass	Silver	50 Ohms	1000 VDC	11 GHz	Free Hanging (In-Line) Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
