Specification	1204060022

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Type	Right Angle, Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Thermoplastic Elastomer (TPE)
Cable Type	Round
Color	Teal
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	1.97 ft
Shielding	Unshielded
Usage	Industrial Environments

120406 Series

Part	2nd Connector Gender	2nd Connector Shell Size - Insert (Code)	Shielding	1st Connector Orientation	2nd Connector Orientation	1st Connector Number of Positions	Assembly Configuration	1st Connector Type	Cable Type	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	Length	1st Connector Number of Positions Loaded	Cable Material	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Type	1st Connector Shell Size - Insert	Usage	Color	1st Connector Gender	Ingress Protection Description	Ingress Protection IP Rating	Connector Pin Count	Connector Type	Mounting Type	Termination	Voltage Rating	Number of Positions	Shell Material	Fastening Type	Contact Finish - Mating	Current Rating	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Contact Material	Applications	Mounting Feature	Shell Finish	Shell Size - Insert	Insert Material

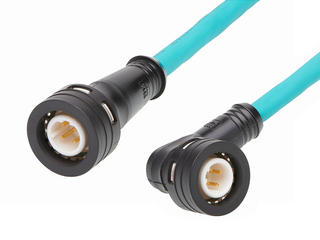

Molex 1204061010	Male Pins	M12	Unshielded	D	D	4 positions	Standard	Receptacle Right Angle	Round	All	Free Hanging (In-Line)	16.4 ft	All	Thermoplastic Elastomer (TPE)	4	Free Hanging (In-Line)	Receptacle	M12	Industrial Environments	Teal	Male Pins	Dust Tight Waterproof	IP67
Molex 1204061049			Shielded						Round			16.4 ft								Teal				4 pos	8p4c Circular Female to RJ45
Molex 1204061001
Molex 1204060007
Molex 1204060028
Molex 1204060002			Unshielded			4 positions	Standard	Plug	Round		Free Hanging (In-Line)	3.28 ft	All	Thermoplastic Elastomer (TPE)			Wire Leads		Industrial Environments	Teal	Female Sockets	Dust Tight Waterproof	IP67
Molex 1204060022			Unshielded			4 positions	Standard	Receptacle Right Angle	Round		Free Hanging (In-Line)	1.97 ft	All	Thermoplastic Elastomer (TPE)			Wire Leads		Industrial Environments	Teal	Male Pins	Dust Tight Waterproof	IP67

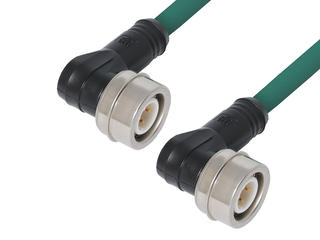

Molex 1204061040	Male Pins	M12	Unshielded	D	D	4 positions	Standard	Receptacle Right Angle	Round	All	Free Hanging (In-Line)	32.8 ft	All	Thermoplastic Polyurethane (TPU)	4	Free Hanging (In-Line)	Receptacle Right Angle	M12	Cat5e Industrial Environments	Teal	Male Pins	Dust Tight Waterproof	IP67
Molex 1204062004			Unshielded																	Silver		Dust Tight Water Resistant Waterproof	IP67 IP69K		Male Pins Receptacle	Panel Mount Through Hole	Solder	250 V	4	Brass	Threaded	Gold	4 A	D	90 °C	-40 °C	Metal	Brass	Industrial	Bulkhead Front Side Nut	Nickel	M12-4	Polyurethane PUR
Molex 1204063007

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Product Specification

Drawing

1204060022 | Datasheet
