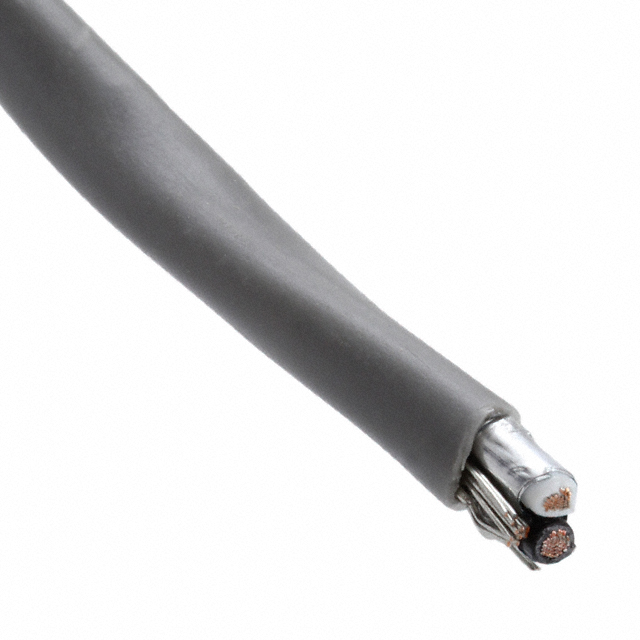

8762 060U1000

Active

Belden Inc.

CABLE 2COND 20AWG CHRM SHD 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG CHRM SHD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	8762 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.204 in
Jacket (Insulation) Diameter [diameter]	5.18 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.028 in
Jacket (Insulation) Thickness	0.711 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	20 AWG

Part	Wire Gauge	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Voltage	Shield Type	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Conductor Insulation	Usage	Jacket (Insulation) Material	Cable Type	Length	Length
Belden Inc. 8762 0602000	20 AWG	Aluminum	-20 C	60 °C	28	7	2	Copper Tinned	Chrome	0.204 in	5.18 mm	Drain Wire	300 V	Foil	609.6 m	2000 ft	0.028 in	0.711 mm	100 %	Polyethylene (PE)	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Multi-Conductor
Belden Inc. 8762 060U1000	20 AWG	Aluminum	-20 C	60 °C	28	7	2	Copper Tinned	Chrome	0.204 in	5.18 mm	Drain Wire		Foil			0.028 in	0.711 mm	100 %	Polyethylene (PE)		Poly-Vinyl Chloride (PVC)	Multi-Conductor	1000 ft	304.8 m
Belden Inc. 8762 060500	20 AWG	Aluminum	-20 C	60 °C	28	7	2	Copper Tinned	Chrome	0.204 in	5.18 mm	Drain Wire		Foil	152.4 m	500 '	0.028 in	0.711 mm	100 %	Polyethylene (PE)		Poly-Vinyl Chloride (PVC)	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 20 AWG Foil 1000.0' (304.8m)
