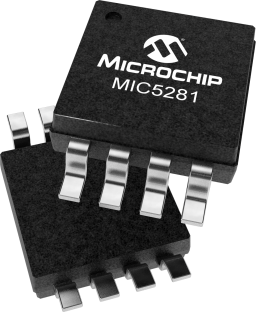

MIC5281-5.0YMM-TR

Active

Microchip Technology

120V/25MA LOW IQ, HIGH PSRR LDO 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

MIC5281-5.0YMM-TR

Active

Microchip Technology

120V/25MA LOW IQ, HIGH PSRR LDO 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MIC5281 Series

The MIC5281 high performance linear regulator offers a very wide input operating voltage range, up to 120V DC, and supplies an output current of up to 25mA.

Ideal for high input voltage applications such as industrial and telecom, the MIC5281 offers 3% initial accuracy, extremely high power supply rejection ratio (>90db) and ultra-low quiescent current of 6µA. The MIC5281 is optimized for high-voltage line transients, making it ideal for harsh environment applications.

The MIC5281 is offered in both fixed output voltage (3.3V/5.0V) and adjustable output voltage (1.27V to 5.5V) options.

Technical Specifications

Parameters and characteristics for this part

Specification	MIC5281-5.0YMM-TR

Current - Output	25 mA
Current - Quiescent (Iq)	11 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package Length	0.118 in
Package Name	8-TSSOP, 8-MSOP, 8-MSOP
Package Width	3 mm
Protection Features	Over Current, Over Temperature
PSRR	90 dB
Voltage - Input (Max)	120 V p-p
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max)	3 V

MIC5281 Series

Part	Voltage Dropout (Max)	Protection Features	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	Package Width	Package Name	Package Length	Output Type	Current - Quiescent (Iq)	Current - Output	Output Configuration	Number of Regulators	Mounting Type	PSRR	Operating Temperature (Max)	Operating Temperature (Min)	Package Features	Voltage - Output (Max)
Microchip Technology MIC5281-5.0YMM-TR	3 V	Over Current Over Temperature	120 V p-p	5 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C
Microchip Technology MIC5281-5.0YMM	3 V	Over Current Over Temperature	120 V p-p	5 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C
Microchip Technology MIC5281-3.3YMM-TR	3 V	Over Current Over Temperature	120 V p-p	3.3 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C
Microchip Technology MIC5281-3.3YMME-TR	3 V	Over Current Over Temperature	120 V p-p	3.3 V	3 mm	8-MSOP 8-MSOP-EP 8-TSSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C	Exposed Pad
Microchip Technology MIC5281YMM-TR	3 V	Over Current Over Temperature	120 V p-p	1.27 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Adjustable	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C		5.5 V
Microchip Technology MIC5281YMM	3 V	Over Current Over Temperature	120 V p-p	1.27 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	Adjustable	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C		5.5 V
Microchip Technology MIC5281YMME	3 V	Over Current Over Temperature	120 V p-p	1.27 V	3 mm	8-MSOP 8-MSOP-EP 8-TSSOP	0.118 in	Adjustable	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C	Exposed Pad	5.5 V
Microchip Technology MIC5281-5.0YMME-TR	3 V	Over Current Over Temperature	120 V p-p	5 V	3 mm	8-MSOP 8-MSOP-EP 8-TSSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C	Exposed Pad
Microchip Technology MIC5281-3.3YMME	3 V	Over Current Over Temperature	120 V p-p	3.3 V	3 mm	8-MSOP 8-MSOP-EP 8-TSSOP	0.118 in	Fixed	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C	Exposed Pad
Microchip Technology MIC5281YMME-TR	3 V	Over Current Over Temperature	120 V p-p	1.27 V	3 mm	8-MSOP 8-MSOP-EP 8-TSSOP	0.118 in	Adjustable	11 µA	25 mA	Positive	1	Surface Mount	90 dB	125 °C	-40 °C	Exposed Pad	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MIC5281 Data Sheet

MIC5281-5.0YMM-TR | Datasheet

Datasheet

Product Change Notice EN
