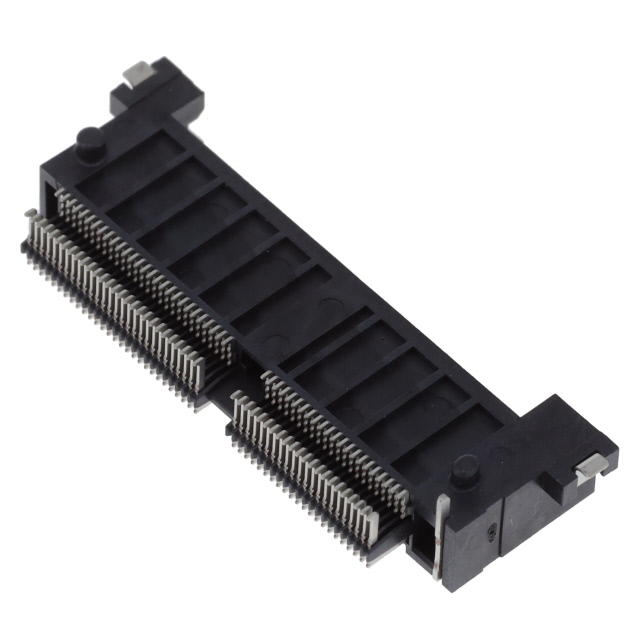

MEC5-050-01-L-RA-W2-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.020

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.020

Technical Specifications

Parameters and characteristics for this part

Specification	MEC5-050-01-L-RA-W2-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Positions/Bay/Row [custom]	50
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Read Out	Dual
Termination	Solder

Part	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Read Out	Pitch [x]	Pitch [x]	Card Type	Color	Mounting Type	Card Thickness	Card Thickness	Material - Insulation	Termination	Contact Finish
Samtec Inc. MEC5-050-01-L-RA-W2-TR	Board Guide Solder Retention	100	10 Áin	0.25 Ám	Female	50	-55 °C	125 °C	2	Copper Alloy	Dual	0.5 mm	0.02 in	Non Specified - Dual Edge	Black	Surface Mount Right Angle	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Solder	Gold
Samtec Inc. MEC5-050-01-L-DV-W1-K-TR	Board Guide Pick and Place Solder Retention	100	10 Áin	0.25 Ám	Female	50	-55 °C	125 °C	2	Copper Alloy	Dual	0.5 mm	0.02 in	Non Specified - Dual Edge	Black	Surface Mount	0.062 in	1.57 mm	Liquid Crystal Polymer (LCP)	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
