145652100205829+T

Active

KYOCERA AVX

5652 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

KYOCERA AVX

5652 SERIES, FLOXY, 0.5MM PITCH,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	145652100205829+T	145652 Series

Connector Type	Plug, Floating	Plug, Floating
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board [z]	11.94 mm	11.94 mm
Height Above Board [z]	0.47 in	0.47 in
Mated Stacking Heights	20 mm	20 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	100	60 - 100
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Part	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Rows	Features	Pitch [x]	Pitch [x]
KYOCERA AVX 145652060201829+T	Floating, Plug	60	20 mm	11.94 mm	0.47 in	Surface Mount	2	Board Guide, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 145652100205829+T	Floating, Plug	100	20 mm	11.94 mm	0.47 in	Surface Mount	2	Board Guide, Solder Retention	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

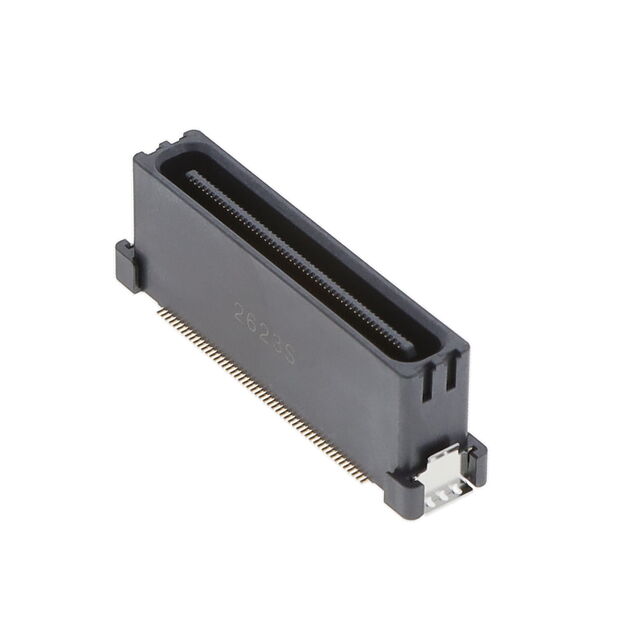

100 Position Connector Plug, Floating Surface Mount
