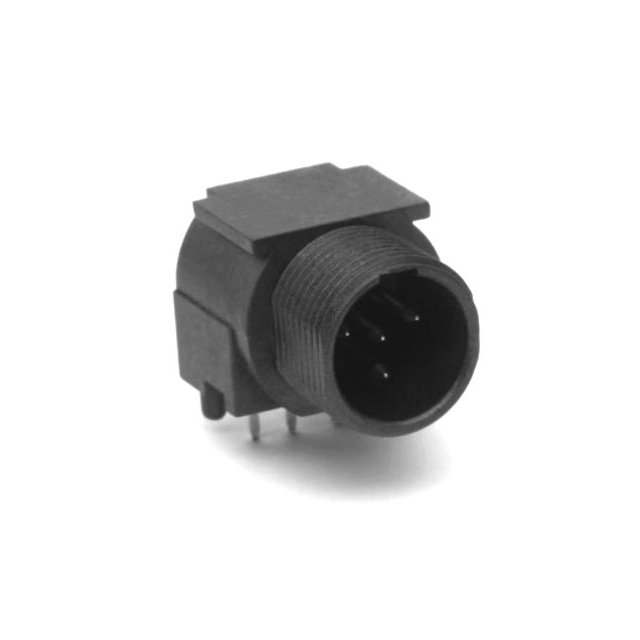

AG4MPCH

Active

AMPHENOL AUDIO

CONN RCPT MALE MINI XLR 4POS SLD

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCPT MALE MINI XLR 4POS SLD

Technical Specifications

Parameters and characteristics for this part

Specification	AG4MPCH

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Copper Alloy
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP40
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Black
Shell Material	Liquid Crystal Polymer (LCP)
Shell Size - Insert	Mini XLR
Shielding	Unshielded
Termination	Solder

CONN RCPT MALE MINI XLR 4POS SLD

Part	Applications	Fastening Type	Shell Size - Insert	Contact Finish - Mating	Shell Material	Shell Finish	Features	Connector Type	Termination	Mounting Feature	Number of Positions	Color	Mounting Type	Primary Material	Current Rating (Amps)	Material Flammability Rating	Orientation	Insert Material	Ingress Protection	Contact Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL AUDIO AG4MPCH	Audio	Latch Holder	Mini XLR	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Board Guide	Male Pins, Receptacle	Solder	Bulkhead - Front Side Nut	4	Black	Panel Mount, Right Angle, Through Hole	Plastic	5 A	UL94 V-0	Keyed	Liquid Crystal Polymer (LCP)	IP40	Brass	Unshielded	-30 ░C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.56

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
