MAX11616EVSYS+

Active

Analog Devices Inc./Maxim Integrated

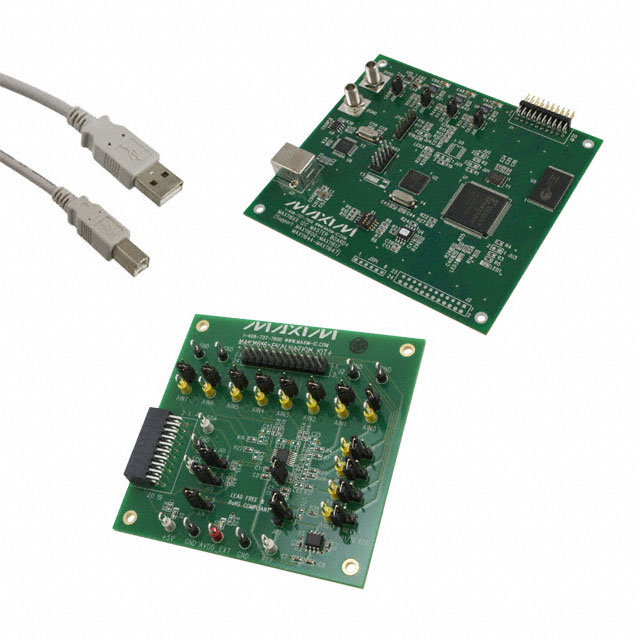

EVALUATION SYSTEM FOR MAX11616

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVALUATION SYSTEM FOR MAX11616

Technical Specifications

Parameters and characteristics commom to parts in this series

IC ADC 12BIT SAR 16QSOP

Part	Input Type	Voltage - Supply, Analog	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Package / Case	Package / Case	Package / Case	Sampling Rate (Per Second)	Architecture	Number of A/D Converters	Reference Type	Data Interface	Ratio - S/H:ADC	Mounting Type	Number of Inputs	Voltage - Supply, Digital	Number of Bits	Supplied Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX11616EEE+	Differential, Single Ended	5 V	16-QSOP	85 °C	-40 °C	MUX-S/H-ADC	0.154 in	16-SSOP	3.9 mm	94.4 k per second	SAR	1	External, Internal	I2C	1:1	Surface Mount	6, 12	5 V	12 bits
Analog Devices Inc./Maxim Integrated MAX11616EEE+T	Differential, Single Ended	5 V	16-QSOP	85 °C	-40 °C	MUX-S/H-ADC	0.154 in	16-SSOP	3.9 mm	94.4 k per second	SAR	1	External, Internal	I2C	1:1	Surface Mount	6, 12	5 V	12 bits
Analog Devices Inc./Maxim Integrated MAX11616EVSYS+										94.4 k per second		1		I2C, Serial					8, 10, 12	Board(s)	MAX11616

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 217.65

General part information

MAX11616 - 8, 10, 12 Bit 94.4k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
